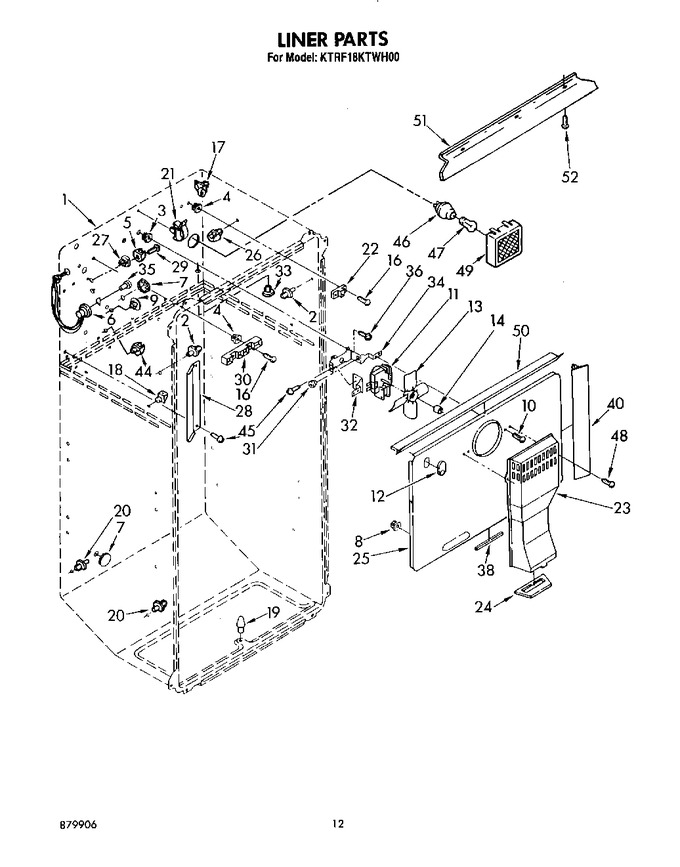

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door
03 - Cabinet
04 - Shelf
05 - Compartment Separator And Control
06 - Unit
07 - Liner , Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 521878 | Stud, Shelf (2) |
|
- | |||||
| 3 | 941700 | Grommet (2) |
|
- | |||||
| 4 | 937252 | Grommet (4) |
|
- | |||||
| 5 | 836492 | Stud, Saddle |
|
- | |||||
| 6 | 937264 | Liner Wiring (ice Maker) |
|
- | |||||
| 7 | 519890 | Plug, Hole (5) |
|
- | |||||
| 8 | 848445 | Grommet (4) |
|
- | |||||
| 9 | 659598 | Hole Plug (2) |
|
- | |||||
| 10 | WP489069 | Screw, 8 X 1/2 (2) (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 11 | SM999 | Motor, Fan (Replaces: 1118715) |
|
Immediately | $ 30.26 | ||||
| 12 | 659776 | Hole, Plug |
|
- | |||||
| 13 | 992920 | Blade, Fan |
|
$ 39.91 | |||||
| 14 | 992953 | Ring, Compression |
|
- | |||||
| 16 | WP488163 | Screw, 8 X 13/16 (Replaces: 488725) |
|
$ 7.92 | |||||
| 17 | 839213 | Stud |
|
$ 295.15 | |||||
| 18 | 836374 | Stud, Retainer (4) |
|
- | |||||
| 19 | 836409 | Grommet, Post |
|
- | |||||
| 20 | 1107968 | Stud, Shelf (4) |
|
- | |||||
| 21 | 851039 | Fastener, Wire |
|
- | |||||
| 22 | 937254 | Terminal Block (single) |
|
- | |||||
| 23 | 1107276 | Air Duct |
|
- | |||||
| 24 | 939099 | Sealing Gasket |
|
- | |||||
| 25 | 1107277 | Cover, Evaporator |
|
- | |||||
| 26 | 523263 | Stud, Saddle (r.s.) |
|
- | |||||
| 27 | 538449 | Grommet |
|
- | |||||
| 28 | 937269 | Wiring Shield |
|
- | |||||
| 29 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487109) |
|
Immediately | $ 8.28 | ||||
| 30 | 937253 | Terminal Block (multiple) |
|
- | |||||
| 31 | 548268 | Grommet (3) |
|
- | |||||
| 32 | 937277 | Bracket, Double |
|
- | |||||
| 33 | 842339 | Grommet (3) |
|
- | |||||
| 34 | 937278 | Bracket, Single |
|
- | |||||
| 35 | 850738 | Receptacle Cap |
|
- | |||||
| 36 | W11693756 | Screw, 8 X 5/8 (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 38 | 939199 | Gasket, Sealing |
|
- | |||||
| 40 | 981750 | Gasket (2) |
|
- | |||||
| 44 | 509108 | Shelf Stud |
|
- | |||||
| 45 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 46 | 850654 | Socket |
|
- | |||||
| 47 | W11679940 | Light Bulb (Replaces: 946059) |
|
Immediately | $ 11.30 | ||||
| 48 | WP488729 | Screw, 8 X 1/2 (Replaces: 488320) |
|
Immediately | $ 8.28 | ||||
| 49 | 981365 | Light Lens |
|
- | |||||
| 50 | 939103 | Gasket, Top |
|
- | |||||
| 51 | 1107258 | Baffle, Liner Top |
|
- | |||||
| 52 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 52 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 52 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| 52 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 52 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 52 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 52 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 52 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 52 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 52 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 52 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 52 | WP489069 | Screw, 8 X 1/2 (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 52 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 52 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 52 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| 52 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 52 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 52 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 52 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 52 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 52 | 799908 | Silicone (spray) |
|
- | |||||
| 52 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | |||||
| 52 | 350941 | Leveler, Xenamel (13 Oz. Spray Can) |
|
- | |||||
| 52 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| 52 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 52 | 285365 | Paint, Spray (13 Oz.) (toast) |
|
- | |||||
| 52 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 52 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 52 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 52 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 52 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 52 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 52 | 285368 | Enamel, Platinum (1 Qt. Uncut) |
|
- | |||||
