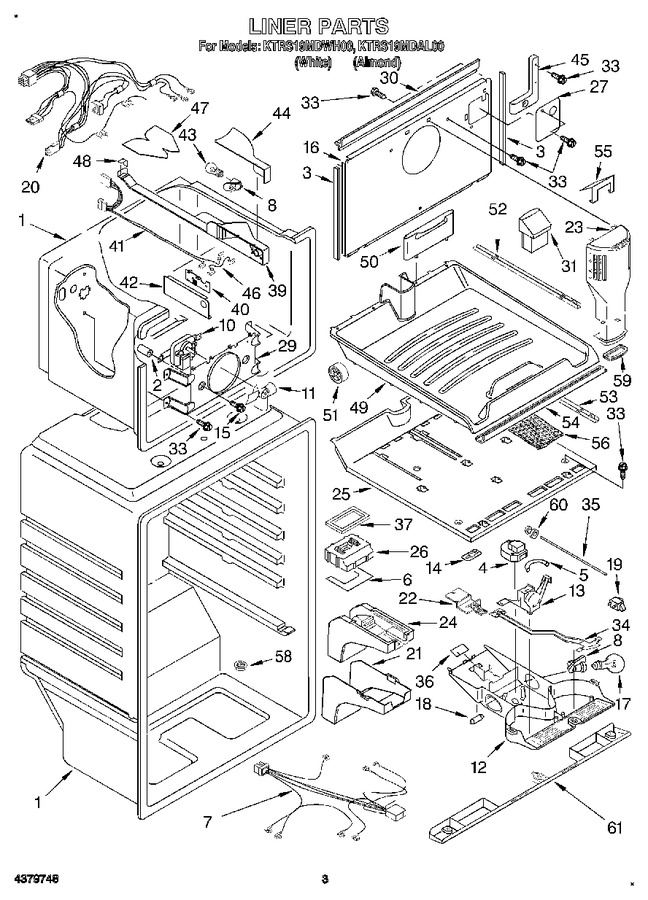

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	531933		Grommet (2)				$ 5.70
3	WP2254360		Gasket, Evaporator Cover (side)   (Replaces: 2166181)				$ 28.12
4	W10822278		Timer, Defrost   (Replaces: 2176340)			Immediately	$ 34.44
5	WP2196003		Thermostat Tube Barrier   (Replaces: 549512)				$ 8.35
6	2179834		Seal, Air Diffuser		Appelez-nous	-
7	2172542		Wire Assy. Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 115.67
10	2176298		Fan Motor		Appelez-nous	-
11	WP2163777		Blade, Fan   (Replaces: 2163777)			Immediately	$ 66.15
12	2174632		Control Box		Appelez-nous	-
13	2176346		Thermostat Assembly (includes Items 5, 18, & 36)		Appelez-nous	-
14	2176341		Clip, Defrost Timer		Appelez-nous	-
15	489412		Screw		Appelez-nous	-
16	2166263		Cover-evaporator		Appelez-nous	-
17	W11679940		Light Bulb (2)   (Replaces: 946059)			Immediately	$ 11.30
18	2163802		Weight, Thermal		Appelez-nous	-
19	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
20	2174610		Wire Assembly, Freezer Compartment		Appelez-nous	-
21	2176281		Cover, Air Diffuser				$ 41.64
22	2174633		Slide, Knob		Appelez-nous	-
23	2172575		Air Tower		Appelez-nous	-
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2176280)			Immediately	$ 131.03
25	2166298		Freezer Floor		Appelez-nous	-
26	2179878		Air Diffuser, Top		Appelez-nous	-
27	WP2217784		Cover, Hole   (Replaces: 944760)				$ 47.22
29	2163827		Bracket, Fan Motor		Appelez-nous	-
30	WP2254360		Gasket, Evaporator Cover (top)   (Replaces: 2166178)				$ 28.12
31	2174629		Air Return & Foil Assembly		Appelez-nous	-
33	WP489442		Screw   (Replaces: 489438)			Immediately	$ 11.49
34	2179855		Air Damper (slide)		Appelez-nous	-
35	2179921		Light Fiber (2)		Appelez-nous	-
36	WP2205079		Seal, Rear Thermostat   (Replaces: 2172532)				$ 10.01
37	2172594		Gasket, Air Diffuser		Appelez-nous	-
39	2166269		Housing Base		Appelez-nous	-
40	2166266		Pc Board, Freezer Light		Appelez-nous	-
41	2166281		Wiring Harness, Freezer Light		Appelez-nous	-
42	2166280		Electrical Shield, Freezer Light		Appelez-nous	-
43	4396822		Bulb, Light   (Replaces: 850166)			Immediately	$ 13.58
44	2166270		Cover, Freezer Light		Appelez-nous	-
45	2172624		Shroud, Icemaker		Appelez-nous	-
46	2166274		Wiring Harness, Freezer Light		Appelez-nous	-
47	2166273		Shield, Electrical Heat		Appelez-nous	-
48	2166284		Gasket, Rear				$ 6.06
49	2179225		Pullout, Freezer Floor		Appelez-nous	-
50	2176242		Rear Fence, Pull- Out Freezer Floor		Appelez-nous	-
51	2176246		Roller, Slide		Appelez-nous	-
52	2179713		Side Support, Floor Assembly		Appelez-nous	-
53	2179714		Center Support, Floor Assembly		Appelez-nous	-
54	2179720		Trim, Pullout Freezer Floor		Appelez-nous	-
55	2179756		Cover-hat		Appelez-nous	-
56	2179772		Insulation, Freezer Floor		Appelez-nous	-
58	2171846		Release Valve				$ 18.99
59	2179839		Gasket, Air Tower		Appelez-nous	-
60	2172906		Grommet, Light Fiber		Appelez-nous	-
61	2174639		Cover, Control Box Front		Appelez-nous	-
