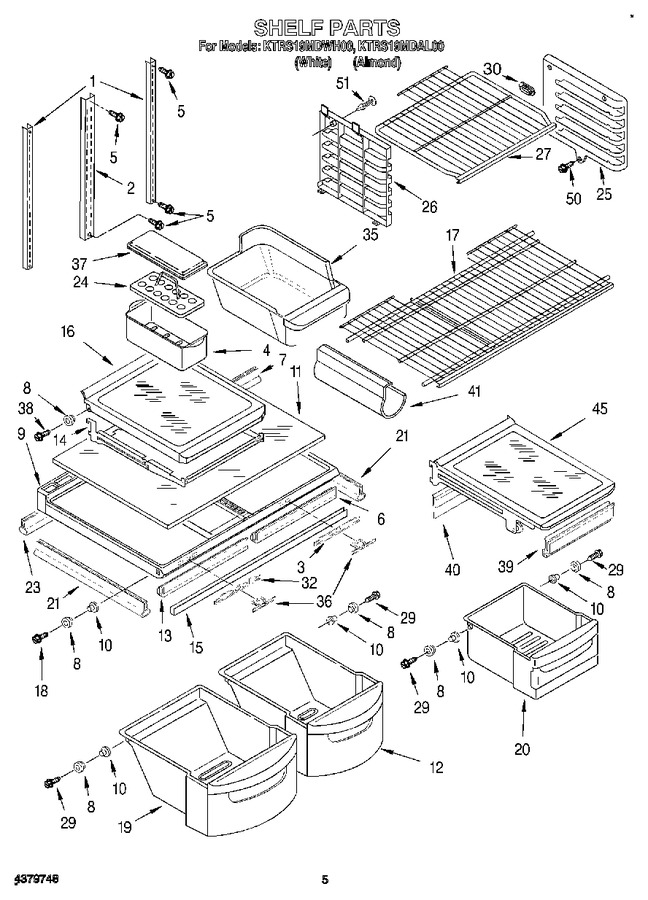

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2172637		Shelf, Ladder (2)		Appelez-nous	-
2	2172638		Shelf, Ladder Center		Appelez-nous	-
3	2174256		Slide, Humidity		Appelez-nous	-
4	W10136387A		Egg Bin   (Replaces: 2164372)				$ 19.54
5	W11544659		Screw   (Replaces: 489415)				$ 14.35
6	WP1125528		Gasket, Crisper Cover (front)   (Replaces: 2179212)				$ 161.69
7	2179215		Gasket, Crisper Cover (rear)		Appelez-nous	-
8	2174388		Roller & Tread Assembly		Appelez-nous	-
9	2174126		Crisper Cover (includes Rollers)		Appelez-nous	-
10	2174478		Eyelet, Roller				$ 5.70
11	2174140		Glass, Crisper Cover		Appelez-nous	-
12	2174059		Pan, Crisper (includes Rollers)		Appelez-nous	-
13	WP1125528		Gasket, Crisper Cover (front)   (Replaces: 2179213)				$ 161.69
14	2174011		Frame Assembly, Spillguard		Appelez-nous	-
15	WP2172748		Crisper Support   (Replaces: 2172541)				$ 102.08
16	2174009		Shelf Assembly, Spillguard (3) (includes Rollers)		Appelez-nous	-
17	WP2176275		Shelf, Freezer   (Replaces: 2166222)				$ 123.40
18	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
19	2174062		Pan, Crisper (includes Rollers)		Appelez-nous	-
20	2174077		Pan, Meat (includes Rollers)		Appelez-nous	-
21	2179214		Gasket, Crisper Cover (side) (4)		Appelez-nous	-
23	2179216		Gasket, Crisper Cover (rear)		Appelez-nous	-
24	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 18.78
25	2172625		Bracket, Shelf Mounting (r.s.)		Appelez-nous	-
26	2172696		Bracket, Shelf Mounting (l.s.)		Appelez-nous	-
27	2166111		Shelf, Freezer (top)		Appelez-nous	-
29	WP489261		Screw   (Replaces: 489261)				$ 8.33
30	2166255		Plug, Shelf Cup		Appelez-nous	-
32	2174257		Slide, Humidity		Appelez-nous	-
35	2174125		Ice Cube Pan		Appelez-nous	-
36	2174253		Button, Humidity Control		Appelez-nous	-
37	2164374		Cover		Appelez-nous	-
38	489439		Screw		Appelez-nous	-
39	2174394		Gasket, Front		Appelez-nous	-
40	2174395		Gasket, Rear		Appelez-nous	-
41	W10777924		Wine Rack Assembly   (Replaces: 2179375)				$ 24.78
45	2174383		Shelf Assembly, Spillguard		Appelez-nous	-
50	WP489442		Screw   (Replaces: 489438)			Immediately	$ 11.49
51	2176270		Fastener		Appelez-nous	-
