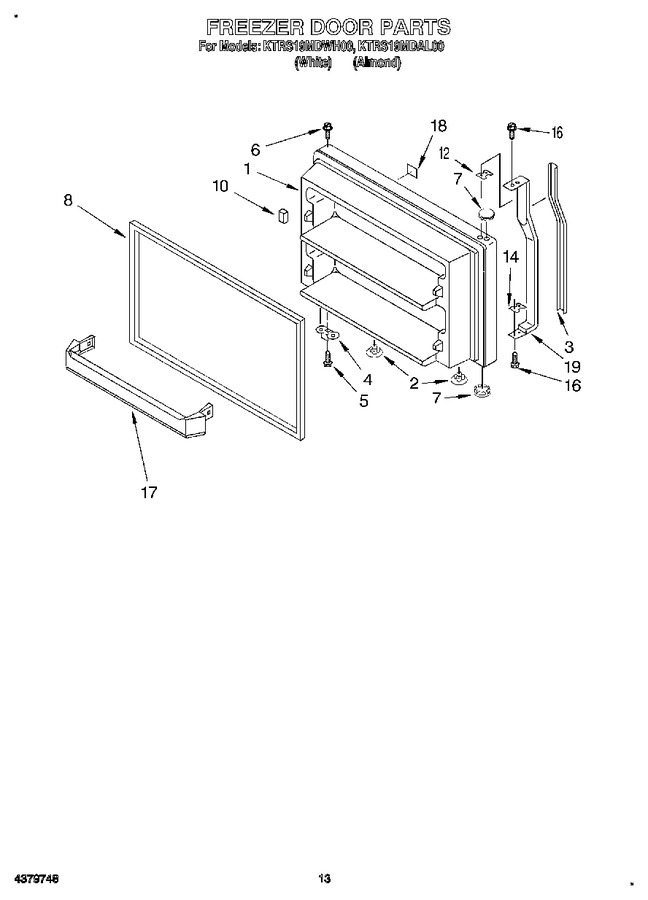

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171338		Panel, Freezer Door (includes Item 8) (white)		Appelez-nous	-
1	2171339		Panel, Freezer Door (includes Item 8) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	2168899		Insert, Handle (almond)		Appelez-nous	-
3	2168898		Insert, Handle (white)		Appelez-nous	-
4	2159367		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2177306		Door Gasket, Magnetic (phantom Gray)		Appelez-nous	-
10	2166278		Door Clip, Freezer Light		Appelez-nous	-
12	1107628		Spacer, Handle		Appelez-nous	-
14	2151813		Shim, Handle		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 7.98
17	2159291		Trivet, Door				$ 35.71
18	2168800		Nameplate (white Model)		Appelez-nous	-
18	2168991		Nameplate (almond Model)		Appelez-nous	-
19	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
19	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
19	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
19	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
19	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
19	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
19	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
19	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
19	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
19	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
19	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
19	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
19	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
19	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
19	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
19	2180007		Door Reversal Instructions		Appelez-nous	-
19	350942		Primer White (13 Oz. Spray Can)				$ 94.14
19	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
19	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
19	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
19	833938		Kit, Terminal Connector				$ 8.47
19	2168901		Handle		Appelez-nous	-
19	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
19	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
19	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
19	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	LIT2179217		Use & Care Guide		Appelez-nous	-
	LIT2179220		Energy Label (english)		Appelez-nous	-
	LIT2172667		Service & Wiring Sheet		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
