SELECT A DIAGRAM
01 - Cover

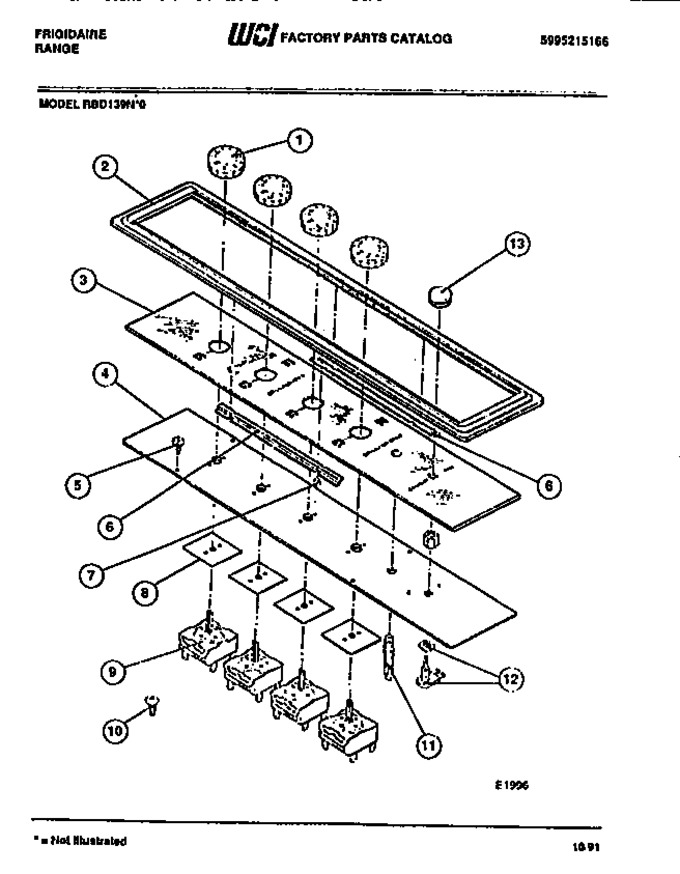

02 - Control Panel
03 - Top
04 - Housing
05 - Element, Grille
06 - Cook Top
07 - Top & Element Assembly
08 - Top Frame, Elements
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210522 | Knob Infinite Switch |
|
- | |||||
| 2 | 5303210523 | Trim Control Panel |
|
- | |||||
| 3 | 5303210524 | Trim Control Panel |
|
- | |||||
| 4 | 5303210526 | Bracket Switch Mtg. |
|
- | |||||
| 5 | 5303210527 | Screw |
|
- | |||||
| 6 | 5303210528 | Retainer Glass |
|
- | |||||
| 7 | 5303210529 | Screw Retainer |
|
- | |||||
| 8 | 5303210530 | Gasket-switch |
|
- | |||||
| 9 | 5303210531 | Switch Infinite |
|
- | |||||
| 10 | 5303210497 | Screw Switch Mtg. |
|
- | |||||
| 11 | 5303210532 | Indicator Light |
|
- | |||||
| 12 | 5303210404 | Switch Fan W/nut |
|
- | |||||
| 13 | 5303210533 | Knob-fan |
|
- |
