SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Top


04 - Housing


05 - Element, Grille


06 - Cook Top


07 - Top & Element Assembly


08 - Top Frame, Elements

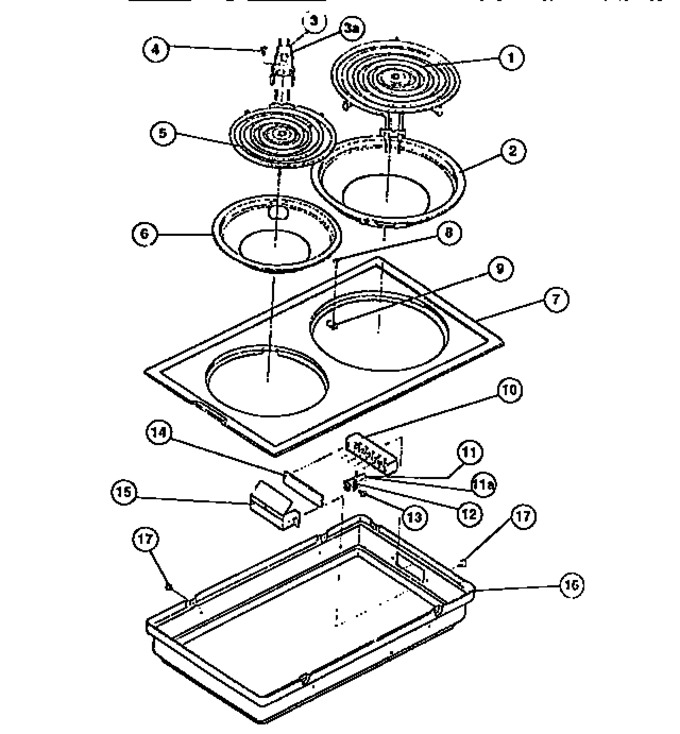

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303210560		Element Large		Appelez-nous	-
2	5303210561		Burner Bowl Large		Appelez-nous	-
3	5303210562		Terminal Block Front W/ Bracket-wire		Appelez-nous	-
3	5303210563		Terminal Block Rear W/ Bracket-wire		Appelez-nous	-
4	5303210536		Screw		Appelez-nous	-
5	5303210564		Element Small		Appelez-nous	-
6	5303210565		Burner Bowl Small		Appelez-nous	-
7	5303210566		Module Top Chrome		Appelez-nous	-
8	5303210567		Screw		Appelez-nous	-
9	5303210568		Weld Nut		Appelez-nous	-
10	5303210569		Plug Ceramic				$ 21.05
11	5303210570		Prong - Ground		Appelez-nous	-
11	5303210571		Prong - Power		Appelez-nous	-
12	5303210572		Harness-wire		Appelez-nous	-
13	5303210573		Screw		Appelez-nous	-
14	5303210574		Insulator		Appelez-nous	-
15	5303210575		Bracket Ceramic Plub		Appelez-nous	-
16	5303210576		Module Pan		Appelez-nous	-
17	5303210536		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
