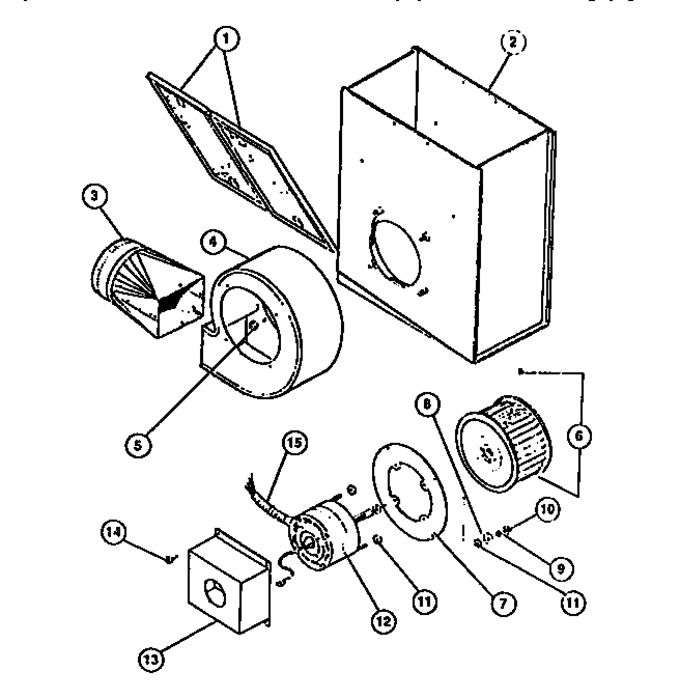

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210445 | Filter |
|
- | |||||
| 2 | 5303210446 | Plenum |
|
- | |||||
| 2 | 5303210447 | Orifiec Weld Assy. (ni) |
|
- | |||||
| 3 | 5303210448 | Transition |
|
- | |||||
| 4 | 5303210449 | Blower Housing |
|
- | |||||
| 5 | 5303210451 | Nut |
|
- | |||||
| 6 | 5303210450 | Fun Wheel W/set Screw |
|
- | |||||
| 7 | 5303210452 | Plate Motor Mtg. |
|
- | |||||
| 8 | 5303210454 | Washer |
|
- | |||||
| 9 | 5303210551 | Lockwasher |
|
- | |||||
| 10 | 5303210456 | Hex Nut |
|
- | |||||
| 11 | 5303210457 | Grommet |
|
- | |||||
| 12 | 5303210458 | Motor Fan |
|
- | |||||
| 13 | 5303210455 | Cover-motor |
|
- | |||||
| 14 | 5303210527 | Screw |
|
- | |||||
| 15 | 5303210553 | Bushing (ni) |
|
- | |||||
| 15 | 5303210461 | Connector Conduit (ni) |
|
- | |||||
| 15 | 5303210460 | Conduit |
|
- | |||||
| 15 | 5303210552 | Screw Ground (ni) |
|
- |
