SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts

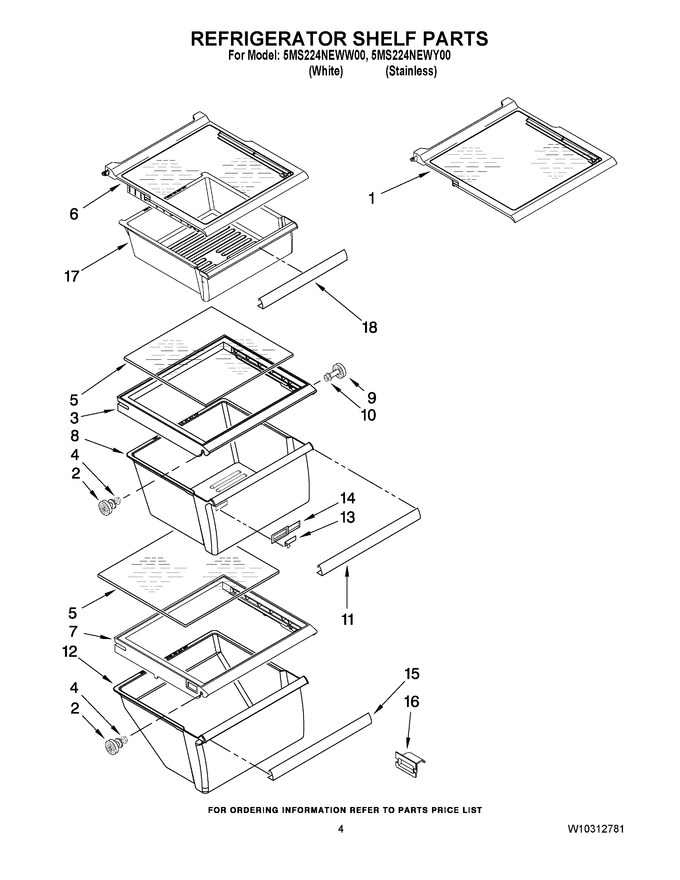

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Air Flow Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Unit Parts


09 - Control Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10276348		Shelf Assembly, Spillguard (3)   (Replaces: W10276348)			Immediately	$ 223.91
2	W11223328		Stud Assembly   (Replaces: W10173126)			Immediately	$ 14.77
3	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 305.85
4	WP3-24004-109		Screw   (Replaces: W10191954)				$ 9.14
5	W10864399		Glass, Meat Cover   (Replaces: 2179259)				$ 232.03
6	WPW10276341		Shelf, Snack Pan   (Replaces: W10276341)				$ 217.50
7	W10508993		Cover, Meat Pan (includes No.16)   (Replaces: 2311726)				$ 305.85
8	WP2188656		Crisper Pan   (Replaces: 2188652)				$ 143.22
9	W11527119		Stud Assembly   (Replaces: W10173127)		Appelez-nous	-
10	W10191952		Screw				$ 5.65
11	WP2179234		Trim, Handle   (Replaces: 2255593)				$ 88.57
12	WP2188664		Meat Pan   (Replaces: 2188654)			Immediately	$ 92.70
13	WP2179342		Slide, Humidity (control)   (Replaces: 2179342)				$ 30.60
14	WP2179343		Body, Humidity Control   (Replaces: 2179343)				$ 34.02
15	WP2179234		Trim, Handle   (Replaces: 2255592)				$ 88.57
16	2179350		Deflector				$ 85.89
17	WP2309517		Snack Pan   (Replaces: 2309518)				$ 133.06
18	WP2179243		Trim, Snack Pan   (Replaces: 2309519)				$ 109.65

    View Diagram in Separate Window       Print Part List
