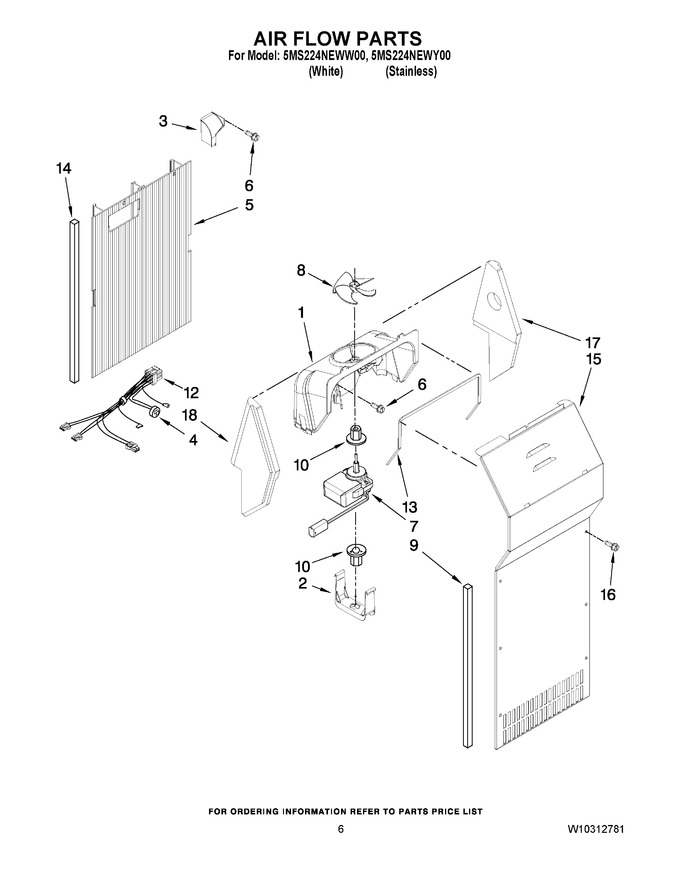

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11254898		Fan Scroll   (Replaces: 2182119)			Immediately	$ 323.27
2	2155590		Retainer, Fan Motor				$ 5.83
3	W10803597		Air Scoop   (Replaces: 2161229)				$ 82.02
4	W10129958		Bi-metal, Defrost		Appelez-nous	-
5	W11503180		Air Duct Freezer   (Replaces: 2203592)				$ 64.40
6	WP489478		Screw   (Replaces: 489478)				$ 7.75
7	WP2321275		Fan Motor   (Replaces: 2321275)				$ 303.64
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
9	WP2304241		Gasket, Evaporator Cover (2)   (Replaces: 2304241)			Immediately	$ 82.80
10	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 7.77
12	W10242395		Harness, Fan Evaporator (includes No.4)		Appelez-nous	-
13	WP2155789		Gasket, Fan Scroll   (Replaces: 2155788)				$ 7.79
14	4388500		Gasket   (Replaces: 2203875)				$ 90.39
15	2203840		Cover, Evaporator (includes No.9)		Appelez-nous	-
16	4389654		Screw (6)   (Replaces: 8281159)				$ 13.89
17	4388358		Support, R.s   (Replaces: 2203595)				$ 31.16
18	4388358		Support, L.s.   (Replaces: 2203596)				$ 31.16
