SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Air Flow Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Unit Parts


09 - Control Parts


10 - Optional Parts (not Included)

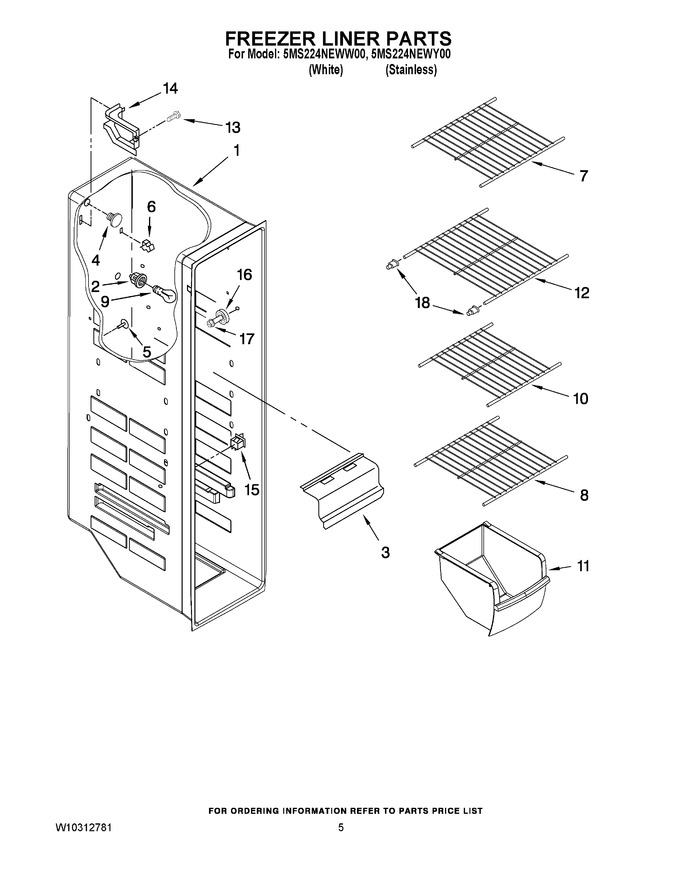

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Asevice Able Part)		Appelez-nous	-
2	W11447232		Socket, Light   (Replaces: W10134764)			Immediately	$ 13.87
3	WP2155595		Light Lens   (Replaces: 2155595)				$ 88.36
4	2223173		Plug, Fill Tube				$ 9.24
5	WP941839		Hole Plug   (Replaces: 941839)				$ 8.03
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	WPW10318951		Shelf-wire   (Replaces: W10276766)				$ 85.76
8	WPW10318949		Shelf, Wire (2)   (Replaces: W10276764)				$ 77.11
9	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
10	WPW10318953		Shelf   (Replaces: W10276769)			Immediately	$ 87.76
11	WP2309758		Freezer Bin   (Replaces: 2309758)			Immediately	$ 130.69
12	WPW10318952		Shelf-wire   (Replaces: W10276767)			Immediately	$ 92.48
13	WP489478		Screw   (Replaces: 489478)				$ 8.18
14	2160912		Wiring Cover		Appelez-nous	-
15	2321286		Switch, Rocker Arm		Appelez-nous	-
16	W11527119		Stud Assembly   (Replaces: W10173127)		Appelez-nous	-
17	W10191952		Screw				$ 5.65
18	WPW10130299		Shelf Cup   (Replaces: W10130299)			Immediately	$ 14.70

    View Diagram in Separate Window       Print Part List
