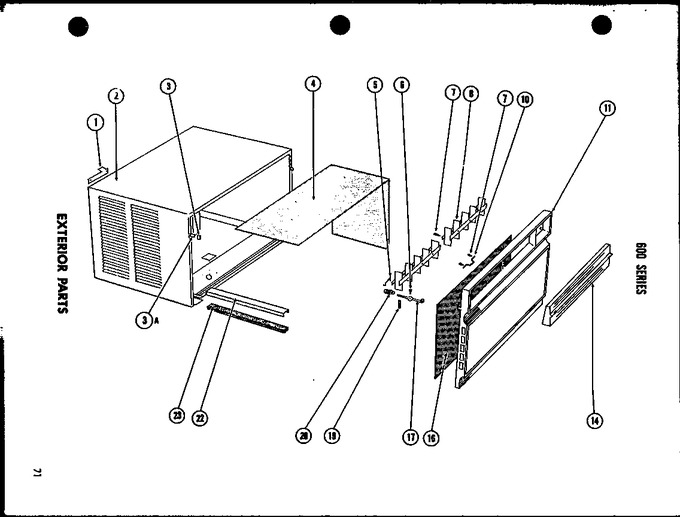

01 - Exterior Parts


02 - Installation Kit Parts


03 - Interior Parts


04 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	D5421001		Outer Case		Appelez-nous	-
3	A4660001		Strike		Appelez-nous	-
3	M0288407		Speed Nut		Appelez-nous	-
4	A4654303		Insulation		Appelez-nous	-
4	A4654304		Insulation		Appelez-nous	-
4	A4654301		Insulation, Outer Case Sides &		Appelez-nous	-
5	A4623801		Linkage Bar		Appelez-nous	-
6	M0590201		Clinch		Appelez-nous	-
7	M0229004		Screw		Appelez-nous	-
8	C5832001		Louver		Appelez-nous	-
10	B5167101		Pin		Appelez-nous	-
11	D5429212		Cabinet Front Assembly, Comple		Appelez-nous	-
11	D5424112		Cabinet Front, Frame Only		Appelez-nous	-
14	D5434405		Horizontal Louver Box, Cabinet		Appelez-nous	-
16	D5427302		Filter		Appelez-nous	-
17	A4655303		Lever, Vertical Louver, Direct		Appelez-nous	-
19	A4623501		Pin,lever		Appelez-nous	-
20	A4624102		Spring,lever		Appelez-nous	-
22	B5169801		Glide		Appelez-nous	-
23	A4591115		Gasket		Appelez-nous	-
23	A4591107		Gasket, Polyethylene, Outer Ca		Appelez-nous	-
NI	A4577802		Hook, Cabinet Front Frame Bott		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
NI	A4664503		Friction Clip		Appelez-nous	-
NI	A4672801		Retainer, Pin		Appelez-nous	-
NI	A4692201		Insulator		Appelez-nous	-
NI	M0234816		Thumb Screw K		Appelez-nous	-
