SELECT A DIAGRAM

01 - Exterior Parts

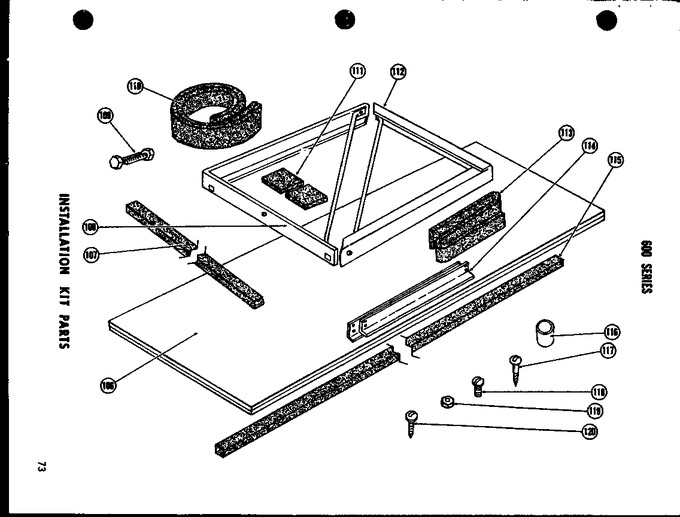

02 - Installation Kit Parts


03 - Interior Parts


04 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
106	A4607703		Window Board		Appelez-nous	-
107	B4764404		Gasket,cab Side		Appelez-nous	-
108	C4829702		Angle Support And Rod Assembly		Appelez-nous	-
109	M0200003		Screw Adjusting		Appelez-nous	-
110	A4660601		Gasket, Sash Seal Strip		Appelez-nous	-
111	A4591110		Gasket		Appelez-nous	-
112	C4829701		Angle Support And Rod Assembly		Appelez-nous	-
113	A4660501		Gasket,bottom Seal		Appelez-nous	-
114	B4150802		Retainer Angle, Window Board		Appelez-nous	-
115	B4144502		Gasket		Appelez-nous	-
116	A4065501		Spacer K		Appelez-nous	-
117	M0236004		Screw		Appelez-nous	-
118	M0206557		Screw		Appelez-nous	-
119	M0282019		Nut-keps		Appelez-nous	-
120	M0212062		Screw		Appelez-nous	-
NI	M0286706		Nut, Speed		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
