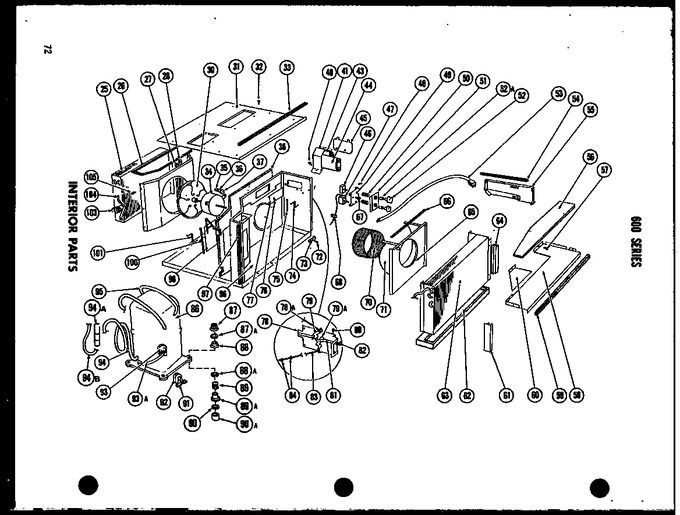

SELECT A DIAGRAM

01 - Exterior Parts


02 - Installation Kit Parts


03 - Interior Parts


04 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
25	D5420201		Condenser Coil Assembly		Appelez-nous	-
26	A3030330		Gasket,per Ft		Appelez-nous	-
27	B5171601		Screen		Appelez-nous	-
28	B4734713		Gasket Pad, Condensate Anti-sp		Appelez-nous	-
30	C5831902		Fan Blade-cond		Appelez-nous	-
31	D5434601		Top Cover		Appelez-nous	-
32	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
33	B1106205		Gasket		Appelez-nous	-
34	C5834201		Motor, Fan		Appelez-nous	-
35	M0282009		Nut				$ 14.07
36	M0270519		Washer		Appelez-nous	-
36	M0270504		Washer		Appelez-nous	-
36	M0270529		Washer		Appelez-nous	-
37	M0500502		Grommet, Fan Motor Mounting		Appelez-nous	-
38	D5426601		Insulation		Appelez-nous	-
40	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
41	A4673001		Strap-capacitor		Appelez-nous	-
41	B5184901		Capacitor Strap		Appelez-nous	-
43	C5825010		Capacitor, Fan Motor Run, 5 M.		Appelez-nous	-
44	C5825020		Capacitor, Compressor Run, 35		Appelez-nous	-
45	B5170201		Panel, Control Side, Access		Appelez-nous	-
46	B5108802		Switch, Rotary		Appelez-nous	-
47	B5103801		Thermostat		Appelez-nous	-
48	M0232012		Screw		Appelez-nous	-
49	B5178201		Bracket Weld		Appelez-nous	-
50	A4663601		Spring		Appelez-nous	-
51	B5172109		Escutcheon		Appelez-nous	-
52	D7009804		Knob		Appelez-nous	-
52	YM0115901		Clip, Knob Mounting		Appelez-nous	-
53	C5283102		Cord Set, Unit Power		Appelez-nous	-
54	A3030330		Gasket,per Ft		Appelez-nous	-
55	B5169901		Wldmt,control Brkt		Appelez-nous	-
56	B5173001		Insulation		Appelez-nous	-
57	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
58	D5421201		Cover Evap		Appelez-nous	-
59	A3030302		Gasket		Appelez-nous	-
60	B5174401		Panel Ext Wld		Appelez-nous	-
61	B5131901		Retainer		Appelez-nous	-
62	D5422301		Filler Block, Evap		Appelez-nous	-
63	D5422501		Evaporator Coil Assembly		Appelez-nous	-
64	B5178403		Retainer, Filter		Appelez-nous	-
65	D5421301		Inlet Panel		Appelez-nous	-
66	A3030330		Gasket,per Ft		Appelez-nous	-
67	M0255015		Sems Fastner		Appelez-nous	-
68	M0103201		Clamp		Appelez-nous	-
70	D5423601		Blower Wheel, Use D54236-2 For		Appelez-nous	-
71	D5422201		Scroll		Appelez-nous	-
72	M0282009		Nut				$ 14.07
73	M0102101		Clamp		Appelez-nous	-
74	B5175301		Spring		Appelez-nous	-
75	A4645902		Hinge Pin		Appelez-nous	-
76	M0540101		Cap, Hinge Pin		Appelez-nous	-
77	B5175601		Exhaust Door Weld		Appelez-nous	-
78	A4659701		Rod		Appelez-nous	-
78	B5175401		Plate Cam Bearing		Appelez-nous	-
78	B5175701		Cam Mech Assy		Appelez-nous	-
79	A4659901		Cam, Exhaust Air Rod		Appelez-nous	-
79	A4659601		Cam, Fresh Air Rod		Appelez-nous	-
80	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
80	M0250629		Screw		Appelez-nous	-
81	B5175202		Cam Lever		Appelez-nous	-
82	A4660301		Knob		Appelez-nous	-
83	M0280114		Nut,acorn		Appelez-nous	-
83	A4659801		Rod		Appelez-nous	-
86	M0401502		Compressor, Tech. Ah5527e, 208		Appelez-nous	-
86	M0401501		Compressor, Tech. Ah5527e, 230		Appelez-nous	-
87	M0283610		Nut		Appelez-nous	-
87	M0274008		Washer,fibre		Appelez-nous	-
88	A4013502		Grommet		Appelez-nous	-
88	M0271501		Washer		Appelez-nous	-
89	A4658702		Spring-comp Mtg		Appelez-nous	-
89	A4013601		Grommet		Appelez-nous	-
91	A4594001		Bale Strap		Appelez-nous	-
92	B5102801		Cover		Appelez-nous	-
93	C5835001		Wiring Harness		Appelez-nous	-
94	C5887901		Tube-discharge		Appelez-nous	-
94	C5885807		Muffler		Appelez-nous	-
94	D5472901		Tube, Discharge, Preformed, Co		Appelez-nous	-
95	C5831401		Suction Tube		Appelez-nous	-
96	D5422109		Base Pan Weldment		Appelez-nous	-
97	B1106207		Gasket		Appelez-nous	-
97	B1106206		Gasket		Appelez-nous	-
97	B1106208		Gasket		Appelez-nous	-
98	B5175501		Door Wldmt Pnt		Appelez-nous	-
100	A4645903		Hinge Pin		Appelez-nous	-
101	B5175301		Spring		Appelez-nous	-
103	C5834601		Capillary Preform		Appelez-nous	-
104	B5159305		Strainer		Appelez-nous	-
105	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
NI	M0288302		Speed Nut		Appelez-nous	-
NI	B5165104		Dampener Tube Q		Appelez-nous	-
NI	A3030301		Gasket (inch)		Appelez-nous	-
NI	WPW10339879		Tie K   (Replaces: M0321201)				$ 8.30
NI	M0270508		Washer		Appelez-nous	-
NI	WP488130		Nut   (Replaces: M0282007)				$ 7.32
NI	B5185101		Panel, Top Cover Control, Acce		Appelez-nous	-
NI	A3030330		Gasket,per Ft		Appelez-nous	-
NI	A4658801		Insulation		Appelez-nous	-
NI	M0286301		Speed Nut		Appelez-nous	-
NI	B5174701		Insulation		Appelez-nous	-
NI	A3030303		Gasket (per Foot)		Appelez-nous	-
NI	M0585001		Clip, Wiring Harness		Appelez-nous	-
NI	B5107612		Gasket		Appelez-nous	-
NI	M0110501		Clip K		Appelez-nous	-
NI	M0251017		Screw		Appelez-nous	-
NI	A4673701		Actuator Cam		Appelez-nous	-
NI	M0570401		Grommet		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
NI	M0273607		Washer-spring		Appelez-nous	-
NI	M0500105		Grommet		Appelez-nous	-
NI	M0252007		Nut, Hex Keps		Appelez-nous	-
NI	A4017201		Seal Strip		Appelez-nous	-
NI	M0103501		Clamp		Appelez-nous	-
NI	B5174801		Insulation, P.p. Extension, Bo		Appelez-nous	-
NI	M0286003		Nut A		Appelez-nous	-
NI	A4664701		Bumper,door		Appelez-nous	-
NI	B1114701		Gasket-5.875``		Appelez-nous	-
NI	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
NI	M0250629		Screw		Appelez-nous	-
NI	M0289601		Palnut		Appelez-nous	-
NI	C5825501		Filler Block		Appelez-nous	-
NI	B5107613		Gasket		Appelez-nous	-
NI	A3030316		Gasket		Appelez-nous	-
NI	Y052721		Nut   (Replaces: M0281006)				$ 24.95
NI	A4695406		Clamp-muffler		Appelez-nous	-
NI	A3023301		Grommet		Appelez-nous	-
NI	A4594101		Gasket		Appelez-nous	-
NI	B5107608		Gasket		Appelez-nous	-
NI	M1205101		Rivet		Appelez-nous	-
NI	B5170301		Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
