SELECT A DIAGRAM

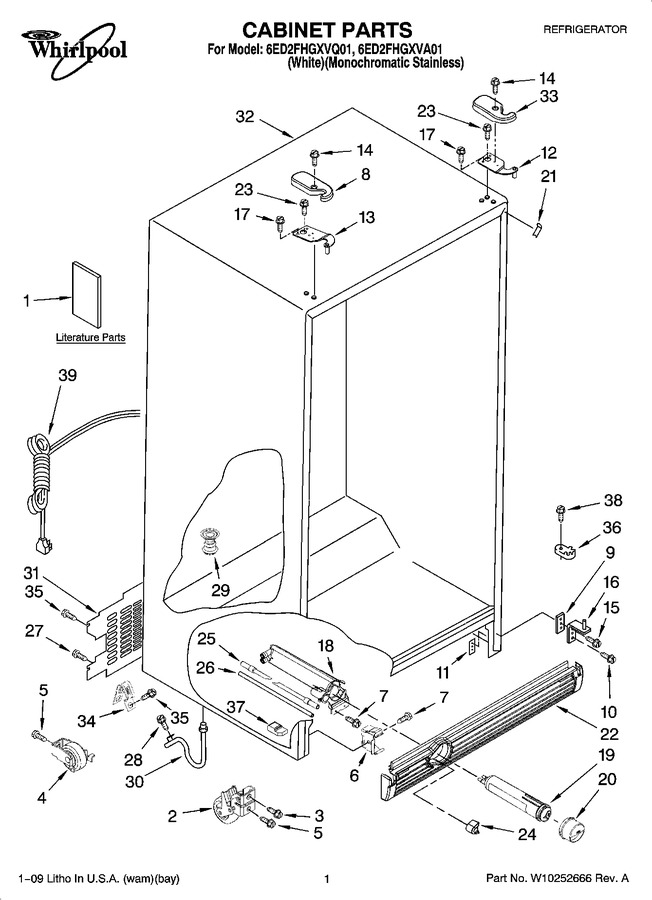

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Air Flow Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Unit Parts


09 - Motor And Ice Container Parts


10 - Dispenser Front Parts


11 - Icemaker Parts


12 - Control Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10217561		Use & Care Guide		Appelez-nous	-
1	W10154822		Service & Wiring Sheet		Appelez-nous	-
1	W10144366		Energy Guide		Appelez-nous	-
1	W10180407		Instruction Sheet, Door Removal		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489128		Screw   (Replaces: 488500)				$ 10.88
8	W10138584		Hinge Cover, Fc (apollo Grey)				$ 15.17
8	W10138581		Hinge Cover, Fc (white)		Appelez-nous	-
9	2209697		Shim (2)				$ 41.25
10	W10856122		Screw (2)   (Replaces: 3400103)				$ 7.76
11	WP2304249		Plate, Screw (2)   (Replaces: 2304249)				$ 14.23
12	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
13	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
14	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
15	WP489497		Screw (4)   (Replaces: 3400113)			Immediately	$ 29.09
16	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 88.90
17	3400858		Screw		Appelez-nous	-
18	WPW10121138		Housing, Filter   (Replaces: W10121138)			Immediately	$ 112.91
19	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
20	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
20	WP2260518MG		Cap, Water Filter (midnight Grey)   (Replaces: 2260502MG)				$ 56.03
21	WPW10283959		Filler, Wrapper (white)   (Replaces: 2201014)				$ 7.82
21	W10851579		Filler, Wrapper (grey)   (Replaces: 2254507)			Immediately	$ 7.19
22	WPW10283955		Grille (white)   (Replaces: W10184869)				$ 119.15
22	W10184882		Grille (midnight Grey)		Appelez-nous	-
23	WP489497		Screw (6)   (Replaces: 489497)			Immediately	$ 29.09
24	2260503MG		Button, Filter (midnight Grey)				$ 27.01
24	2260503W		Button, Filter (white)			Immediately	$ 34.16
25	WP2304697		Tube, Inlet   (Replaces: 2304697)				$ 137.59
26	WPW10350006		Tube, Outlet   (Replaces: 2255012)				$ 115.54
27	WP488488		Screw   (Replaces: 489290)				$ 7.68
28	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
29	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
30	W11512417		Extension Tube   (Replaces: W10153550)				$ 34.79
31	2220757		Cover, Unit		Appelez-nous	-
33	W10138576		Hinge Cover, Rc (white)		Appelez-nous	-
33	W10138579		Hinge Cover, Rc (apollo Grey)				$ 35.68
34	489348		Clamp, Service Cord		Appelez-nous	-
35	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
36	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
37	2260519		Block-housing		Appelez-nous	-
38	WP489483		Screw   (Replaces: 489483)				$ 10.87
39	W10199314		Service Cord   (Replaces: W10123616)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
