SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Air Flow Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Unit Parts


09 - Motor And Ice Container Parts


10 - Dispenser Front Parts


11 - Icemaker Parts


12 - Control Parts, Optional Parts (not Included)

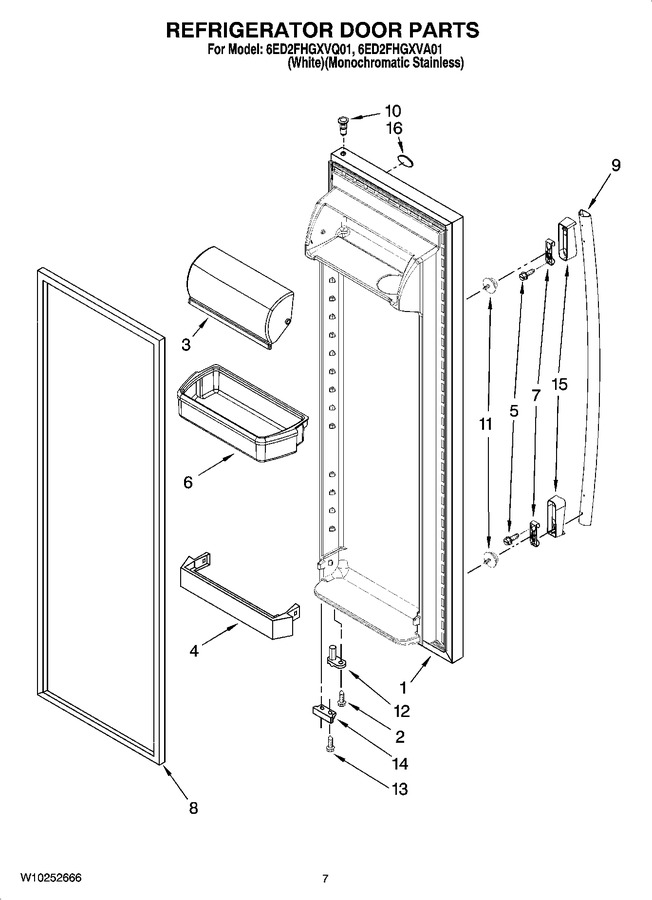

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309622LA		Refrigerator Door (includes Item 8) (satina/apollo)		Appelez-nous	-
1	2325248W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
4	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 76.32
5	WP8533988		Screw (4)   (Replaces: W10155511)			Immediately	$ 7.95
6	W10158506		Shelf Bin (3)				$ 109.63
7	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
8	2159073		Door Gasket, Magnetic (service) (mist Beige)   (Replaces: 2309600)				$ 317.32
8	W10136732		Door Gasket, Magnetic (service) (apollo Grey)   (Replaces: 2327161)			Immediately	$ 344.00
9	WPW10127761K		Handle (white)   (Replaces: W10127765)				$ 186.67
9	W10273555		Handle (satina)   (Replaces: W10127768)				$ 187.89
10	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
11	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 8.69
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop   (Replaces: 2206629)				$ 40.03
15	W10127769		Endcap (white)		Appelez-nous	-
15	W10152862		Endcap (apollo Grey)		Appelez-nous	-
16	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74

    View Diagram in Separate Window       Print Part List
