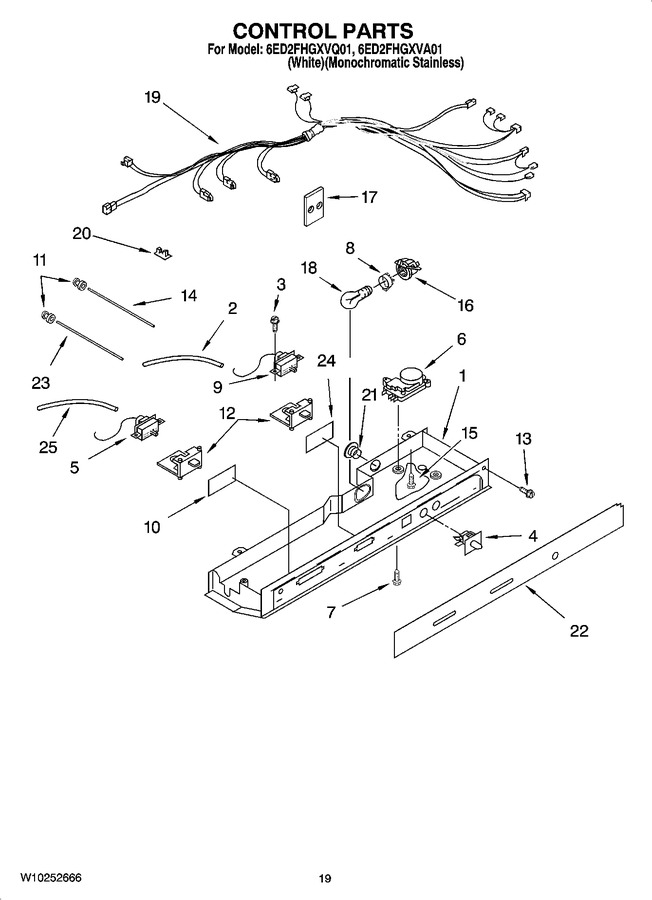

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2200135 | Control Box |
|
- | |||||
| 2 | WP2196003 | Tube Barrier, Thermostat (Replaces: 2182150) |
|
$ 7.95 | |||||
| 3 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.13 | |||||
| 4 | WP2149705 | Light Switch (Replaces: 2321287) |
|
Immediately | $ 40.40 | ||||
| 5 | WP2321289 | Thermostat (fc) (Replaces: 2321289) |
|
$ 230.19 | |||||
| 6 | WP2188379 | Defrost Timer (Replaces: 2321261) |
|
$ 193.40 | |||||
| 7 | 489392 | Screw (2) (Replaces: 489398) |
|
$ 13.35 | |||||
| 8 | W10119914 | Shroud, Light |
|
- | |||||
| 9 | WP2321305 | Thermostat (rc) (Replaces: 2321305) |
|
$ 241.74 | |||||
| 10 | 2172940 | Window |
|
- | |||||
| 11 | 2172906 | Grommet, Light Bar |
|
- | |||||
| 12 | 2161466 | Slide, Thermostat |
|
$ 21.22 | |||||
| 13 | WPW10141645 | Screw (2) (Replaces: 489084) |
|
$ 7.67 | |||||
| 14 | 2179920 | Light Bar (rc) |
|
$ 37.08 | |||||
| 15 | WP488488 | Screw (2) (Replaces: 489290) |
|
$ 7.68 | |||||
| 16 | W11447232 | Light Socket (Replaces: W10134764) |
|
Immediately | $ 13.21 | ||||
| 17 | W10173095 | Heat Shield |
|
- | |||||
| 18 | WP67002552 | Light Bulb (Replaces: 851682) |
|
Immediately | $ 11.75 | ||||
| 19 | W10129766 | Control Box Harness |
|
- | |||||
| 20 | 1115375 | Clip, Wiring |
|
$ 11.15 | |||||
| 21 | 940014 | Hole Plug |
|
$ 18.33 | |||||
| 22 | W10203047 | Escutcheon Control Box |
|
- | |||||
| 23 | 2179921 | Light Bar (fc) |
|
- | |||||
| 24 | 2172940 | Window |
|
- | |||||
| 25 | WP2196003 | Tube, Barrier Thermostat (Replaces: 2196003) |
|
$ 7.95 | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.07 | ||||||
| 2217192 | Cleaner, (stainless Steel) |
|
- | ||||||
| W11729596 | Field Installable Ice Maker (eckmf94) (Replaces: 2155469) |
|
Immediately | $ 150.98 | |||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 89.66 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 799344 | Paint, Bulk (1qt.) (white) |
|
$ 237.46 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 |
