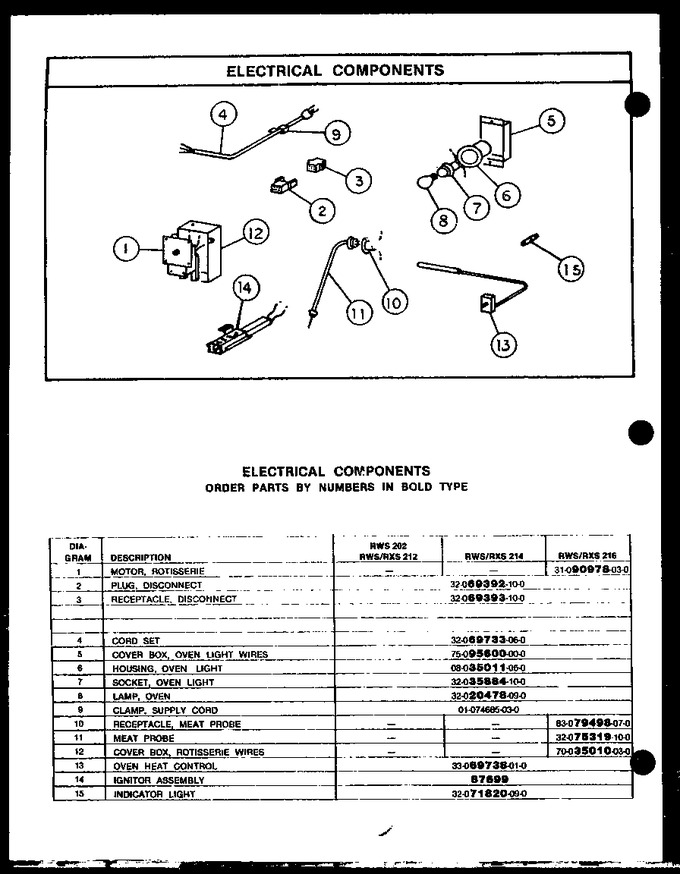

02 - Electrical Components
03 - Gas Components
04 - Oven And Broiler Door Parts Rws-rxs
05 - Oven And Broiler Parts Rws-rxs
06 - Page 1
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 0069392 | Plug, Disconnect |
|
- | |||||
| 3 | 0069393 | Receptacle, Disconnect |
|
- | |||||
| 4 | 0069733 | Cord Supply Set |
|
- | |||||
| 5 | 0095600 | Wire Cover Box Oven Light |
|
- | |||||
| 6 | 0035011 | Housing Oven Light |
|
- | |||||
| 7 | 0035884 | Sub 90264 Oven Light Sock. Kit |
|
- | |||||
| 8 | 8009 | Sub A0282806 (Replaces: Y0020478) |
|
Immediately | $ 17.51 | ||||
| 9 | Y0074685 | Wire Clamp, Insulated |
|
- | |||||
| 13 | Y0069738 | Oven Heat Control |
|
- | |||||
| 14 | 786324 | Kit, Ignitor-bake/broil (Replaces: Y0087699) |
|
Immediately | $ 81.42 | ||||
| 15 | Y0071820 | Indicator Light |
|
- |
