SELECT A DIAGRAM

01 - Control Panel Parts


02 - Electrical Components


03 - Gas Components


04 - Oven And Broiler Door Parts Rws-rxs

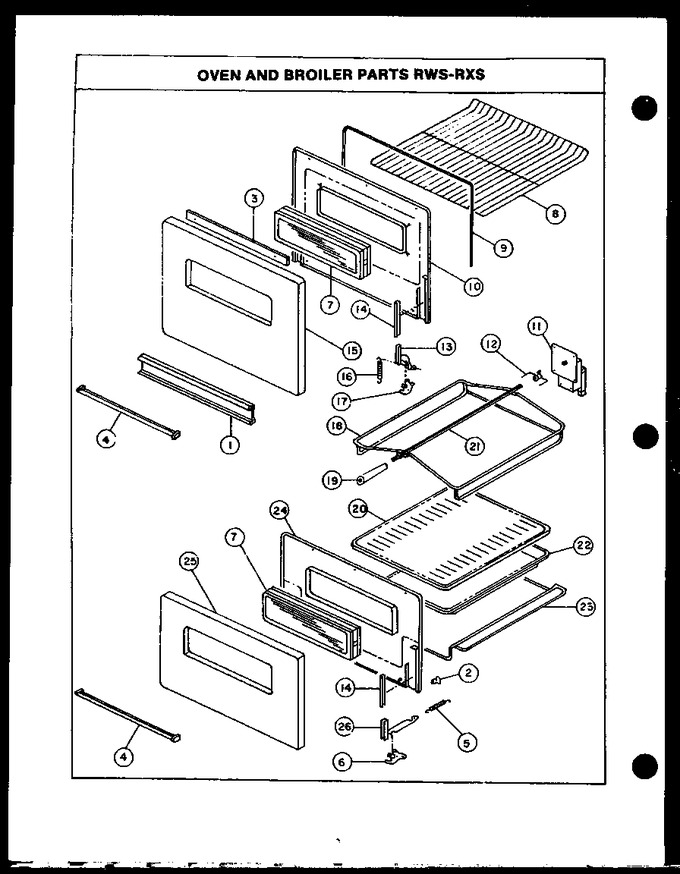

05 - Oven And Broiler Parts Rws-rxs


06 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y7070535040		Decorative Heat Shield		Appelez-nous	-
2	0011061		Bumper, Rubber		Appelez-nous	-
3	0076854		Counterweight Ov Door W/window		Appelez-nous	-
4	Y0079689		Handle, Oven Door		Appelez-nous	-
5	0011204		Door Spring, 16 Inch Plain		Appelez-nous	-
6	60914		Hinge Roller Assembly, Broiler		Appelez-nous	-
6	60915		Hinge Roller Assembly, Broiler		Appelez-nous	-
7	0073879		Oven Window Assy.		Appelez-nous	-
8	0095705		Rack, Oven		Appelez-nous	-
9	Y0095573		Gasket, Oven Door		Appelez-nous	-
10	0077311		Backer, Oven Door, With Window		Appelez-nous	-
11	Y0090978		Rotisserie Motor		Appelez-nous	-
12	Y0301156		Skewer With Thumbsc		Appelez-nous	-
13	60910		Hinge Arm Assembly - Right Han		Appelez-nous	-
13	60911		Hinge Arm Assembly - Left Hand		Appelez-nous	-
14	Y0097109		Socket Hinge L H		Appelez-nous	-
14	Y0035096		Socket Hinge R H		Appelez-nous	-
15	Y077318L		Panel, Door (almond)		Appelez-nous	-
15	Y077318H		Sub 77318d Oven Door Panel Gd		Appelez-nous	-
15	Y077318W		Net-panel,door(white)		Appelez-nous	-
16	Y0016098		Door Spring, 24 Inch Plain		Appelez-nous	-
17	60918		Fixed Hinge - Left Hand		Appelez-nous	-
17	Y60919		Fixed Hinge - Right Hand		Appelez-nous	-
18	0078071		Rotisserie Rack		Appelez-nous	-
19	0042748		Rotisserie Handle		Appelez-nous	-
20	4396923		Broiler Grid   (Replaces: Y0098682)			Immediately	$ 54.64
21	301075K		Rotisserie Spit		Appelez-nous	-
22	Y0011161		Sub 11161cg, Broiler Pan		Appelez-nous	-
23	Y0077260		Rack, Oven 17 31/32x 18 1/2``		Appelez-nous	-
24	0077254		Backer,broiler Lt. Gray		Appelez-nous	-
25	W10124808		Broiler Door Panel, W/window,		Appelez-nous	-
25	60-077314-42-L		Broiler Door Panel, W/window,		Appelez-nous	-
25	W10124809		Broiler Door Panel, W/window,		Appelez-nous	-
26	60908		Mounting Channel - Left Hand		Appelez-nous	-
26	60909		Mounting Channel - Right Hand		Appelez-nous	-
NI	Y60923		Shoulder Bolt		Appelez-nous	-
NI	60922		Locknut				$ 86.90

    View Diagram in Separate Window       Print Part List
