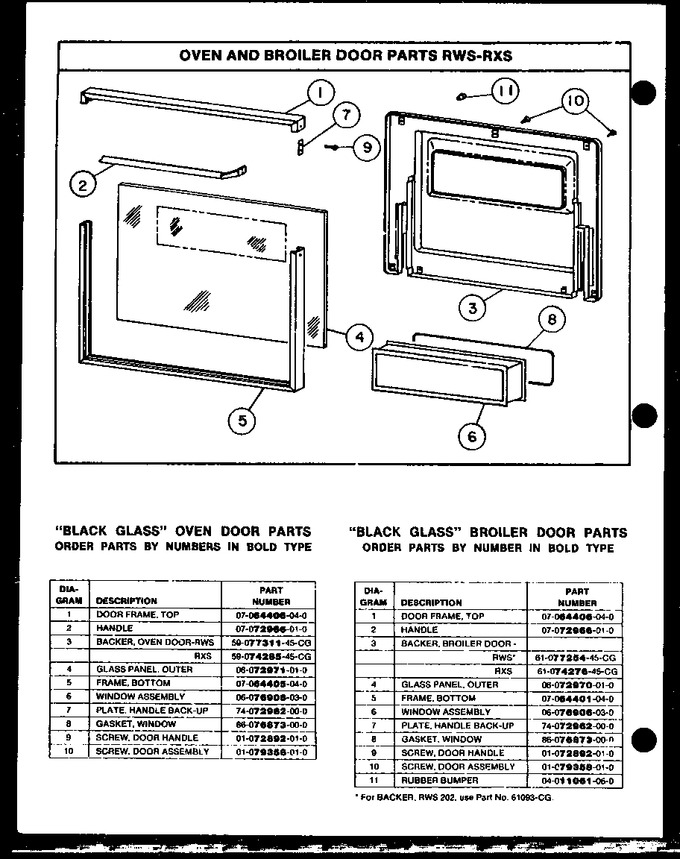

04 - Oven And Broiler Door Parts Rws-rxs
05 - Oven And Broiler Parts Rws-rxs
06 - Page 1
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0064406 | Door Frame Top |
|
- | |||||
| 2 | 0072966 | Handle-22.780l For Blk Glass D |
|
- | |||||
| 3 | 0077254 | Backer,broiler Lt. Gray |
|
- | |||||
| 3 | 0074276 | Door Backer, C/c |
|
- | |||||
| 3 | 0074285 | Backer, Oven Door |
|
- | |||||
| 3 | 0077311 | Backer, Oven Door, With Window |
|
- | |||||
| 4 | Y0072970 | Glass, Outer Panel |
|
- | |||||
| 4 | 0072971 | Glass Panel, Outer |
|
- | |||||
| 5 | Y0064401 | Door Frame,bottom |
|
- | |||||
| 5 | Y0064405 | Door Frame Bottom |
|
- | |||||
| 6 | Y0076906 | Window Assy Suffix ``g`` |
|
- | |||||
| 7 | Y0072962 | Plate, Handle Mtg. |
|
- | |||||
| 8 | Y0076873 | Gasket, Oven Window Suffix ``g`` |
|
- | |||||
| 9 | 8169479 | Screw, No.8-18 X 1/2 P Flt Hd (Replaces: Y0072892) |
|
$ 6.57 | |||||
| 10 | WP7101P126-60 | Screw, No.10-12 X 500`` Ab (zn) (Replaces: Y0079358) |
|
Immediately | $ 7.52 | ||||
| 11 | 0011061 | Bumper, Rubber |
|
- |
