SELECT A DIAGRAM

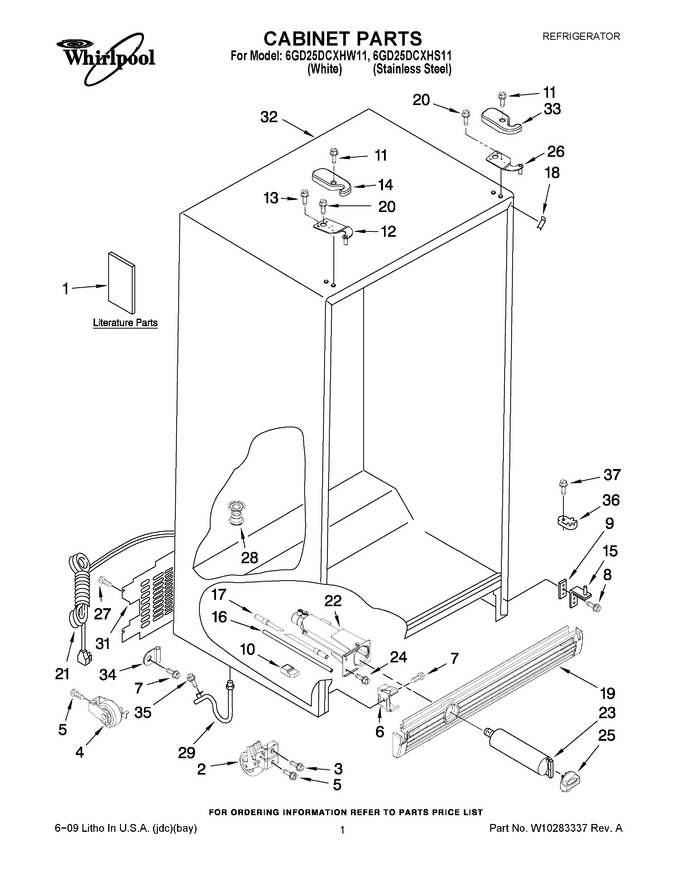

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10129871		Use & Care Guide		Appelez-nous	-
1	W10142191		Service & Wiring Sheet		Appelez-nous	-
1	628371		Modular Icemaker Service Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: W10001260)				$ 7.75
8	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 29.09
9	WP2181911		Shim (2)   (Replaces: 2156056)				$ 33.21
10	2186489		Block, Housing Support		Appelez-nous	-
11	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
12	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
13	WP489128		Screw   (Replaces: 8281149)				$ 10.88
14	WP2203407B		Hinge Cover (black)   (Replaces: 2203407B)				$ 19.52
14	WP2203407W		Hinge Cover (white)   (Replaces: 2203407W)				$ 20.75
15	W10138965		Hinge Bottom (2)				$ 89.44
16	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 115.54
17	WP2304697		Tube, Filter Inlet   (Replaces: 2304697)				$ 137.59
18	2304846		Filler, Wrapper (white)		Appelez-nous	-
18	2304848		Filler, Wrapper (black)		Appelez-nous	-
19	W10803964		Grille (black)   (Replaces: 2198468B)				$ 127.70
19	W10803964		Grille (white)   (Replaces: 2198468W)				$ 127.70
20	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
21	W10199314		Service Cord   (Replaces: W10123616)		Appelez-nous	-
22	WP2186443		Housing, Water Filter   (Replaces: 2186443)			Immediately	$ 97.35
23	EDR5RXD1B		Water Filter   (Replaces: 2203220)			Immediately	$ 49.99
24	WP489500		Screw   (Replaces: 489500)				$ 7.78
25	WP2186494B		Cap, Water Filter (black)   (Replaces: 2186494B)			Immediately	$ 53.20
25	WP2186494W		Cap, Water Filter (white)   (Replaces: 2186494W)				$ 55.72
26	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
27	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
28	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
29	W11512417		Extension Tube   (Replaces: W10153550)				$ 34.79
31	2220758		Cover, Unit		Appelez-nous	-
32	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
33	WP2203408B		Hinge Cover (black)   (Replaces: 2203408B)				$ 18.63
33	WP2203408W		Hinge Cover (white)   (Replaces: 2203408W)				$ 20.97
34	489348		Clamp-cord		Appelez-nous	-
35	WPW10141645		Screw   (Replaces: W10141645)				$ 7.67
36	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
37	WP489483		Screw   (Replaces: 489483)				$ 10.87
