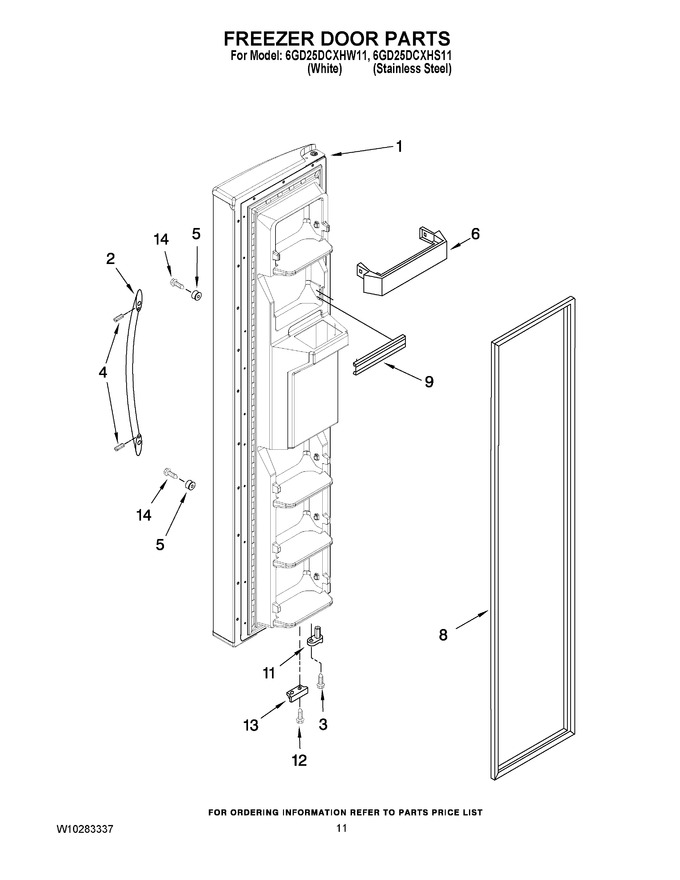

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10199128		Freezer Door (includes Item No.8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10129906		Freezer Door (includes Item No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2319727W		Handle (white)				$ 106.80
2	2319727S		Handle (stainless)				$ 133.96
3	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
4	W11366418		Screw, Set   (Replaces: W10010140)			Immediately	$ 15.79
5	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
6	WP2171157		Trivet, Shelf (4)   (Replaces: 2171157)				$ 60.67
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
8	2159074		Door Gasket, Magnetic (black)   (Replaces: 2221303)				$ 310.19
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 23.11
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	W10185567		Bracket, Door Stop (black)		Appelez-nous	-
13	W10185566		Bracket, Door Stop (chrome)		Appelez-nous	-
14	W10141596		Screw				$ 8.78
