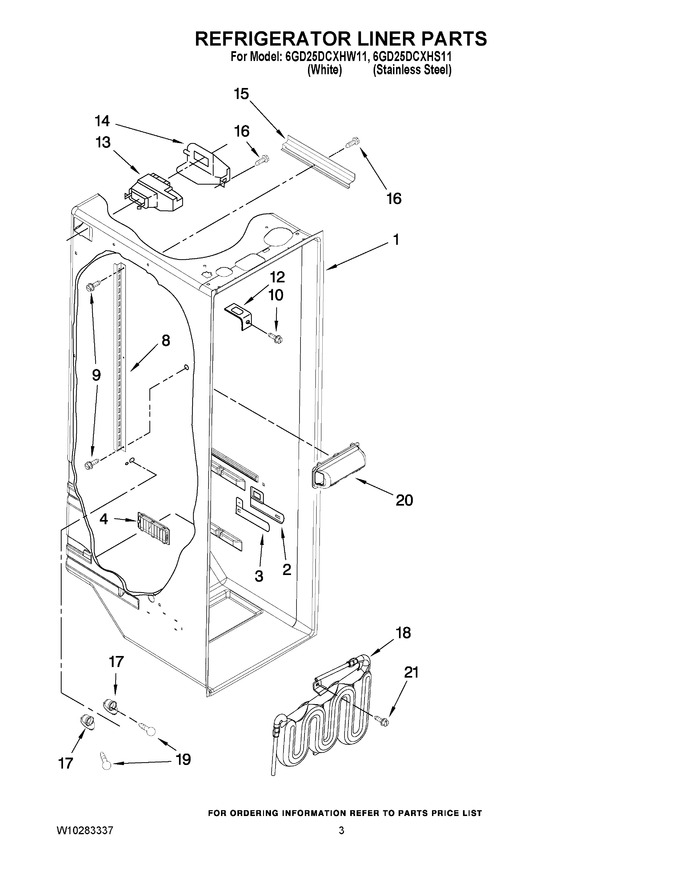

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
8	2319866		Ladder, Shelf				$ 22.16
9	WP489478		Screw   (Replaces: W10001260)				$ 7.75
10	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
12	WP2256085		Bracket Retainer   (Replaces: 2256085)				$ 34.38
13	WPW10151378		Air Diffuser Assembly   (Replaces: W10151378)				$ 311.55
14	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 131.57
15	2150331		Cover, Conduit				$ 24.40
16	W10759522		Screw   (Replaces: W10004810)				$ 7.75
17	W11447232		Socket   (Replaces: W10134764)			Immediately	$ 13.21
18	WPW10276792		Reservoir   (Replaces: 2307107)				$ 137.57
19	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.75
20	W11239891		Shield Assy, Light   (Replaces: W10242623)				$ 96.69
21	W10141518		Screw (2)				$ 9.09
