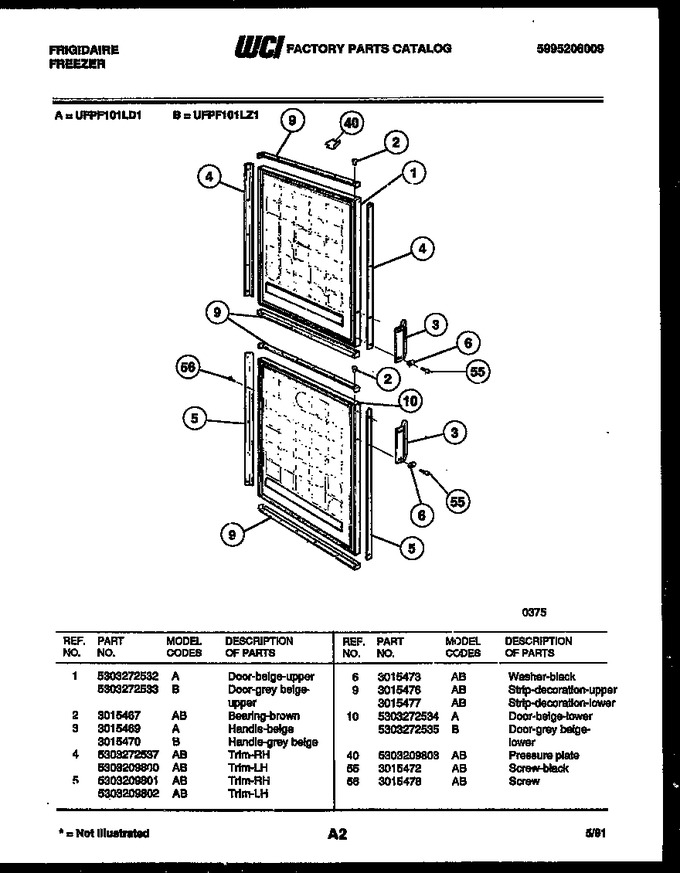

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303272532 | Door-beige-upper |
|
- | |||||
| 2 | 3015467 | Bearing (brown) |
|
- | |||||
| 3 | 3015469 | Handle-beige |
|
- | |||||
| 4 | 5303272537 | Trim-rh |
|
- | |||||
| 5 | 5303209801 | Trim-rh |
|
- | |||||
| 6 | 3015473 | Washer-black |
|
- | |||||
| 9 | 3015476 | Strip-decoration-upper |
|
- | |||||
| 10 | 5303272534 | Door-beige-lower |
|
- | |||||
| 40 | 5303209803 | Pressure Plate |
|
- | |||||
| 55 | 3015472 | Screw-black |
|
- | |||||
| 56 | 3015478 | Screw |
|
- | |||||
| 4A | 5303209800 | Trim-lh |
|
- | |||||
| 5A | 5303209802 | Trim-lh |
|
- | |||||
| 9A | 3015477 | Strip-decoration-lower |
|
- |
