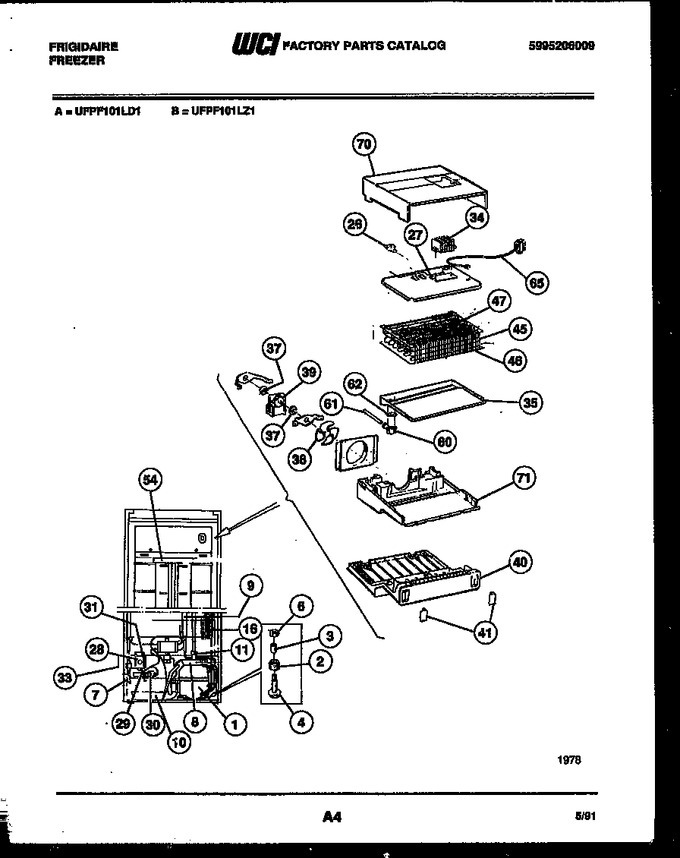

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


05 - System And Control Parts


06 - Shelves And Supports


07 - Ice Maker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916012		Compressor		Appelez-nous	-
2	216498900		Grommet   (Replaces: 5308002681)				$ 14.46
3	5306594529		Spacer				$ 10.34
4	08002679		Screw		Appelez-nous	-
6	3015930		Nut		Appelez-nous	-
7	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 35.19
8	5303209811		Defrost-pan		Appelez-nous	-
9	5303209813		Hose		Appelez-nous	-
10	5303209816		Tray		Appelez-nous	-
11	5303209817		Clamp		Appelez-nous	-
14	5303272544		Adapter		Appelez-nous	-
16	3015578		Condenser		Appelez-nous	-
20	3015935		Instructions-ice Maker		Appelez-nous	-
25	5303272545		Valve Check		Appelez-nous	-
26	5303272546		Thermostat-defrost		Appelez-nous	-
27	5303209819		Heater-drainage		Appelez-nous	-
28	5303209820		Cover		Appelez-nous	-
29	5303209821		Wiring Harness		Appelez-nous	-
30	5303209822		Cover		Appelez-nous	-
31	5303209823		Screw		Appelez-nous	-
33	5303209824		Timer		Appelez-nous	-
34	5303272547		Terminal Block		Appelez-nous	-
35	5303209826		Tray Evap		Appelez-nous	-
37	5303209827		Bushing-rubber		Appelez-nous	-
38	5303209828		Fan-blade		Appelez-nous	-
39	5303209829		Motor		Appelez-nous	-
40	5303209830		Cover		Appelez-nous	-
41	5303209831		Washer-covering		Appelez-nous	-
45	5303209832		Evaporator		Appelez-nous	-
46	5303272548		Heater-defrost		Appelez-nous	-
47	5303272549		Heater-defrost		Appelez-nous	-
54	5303209838		Sealing		Appelez-nous	-
60	5303209839		Coupling		Appelez-nous	-
61	5303209840		Hose		Appelez-nous	-
62	5303209841		Gasket		Appelez-nous	-
65	5303209842		Wiring Harness		Appelez-nous	-
70	5303209843		Insulation-top Evap		Appelez-nous	-
71	5303209844		Insulation-btm Evap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
