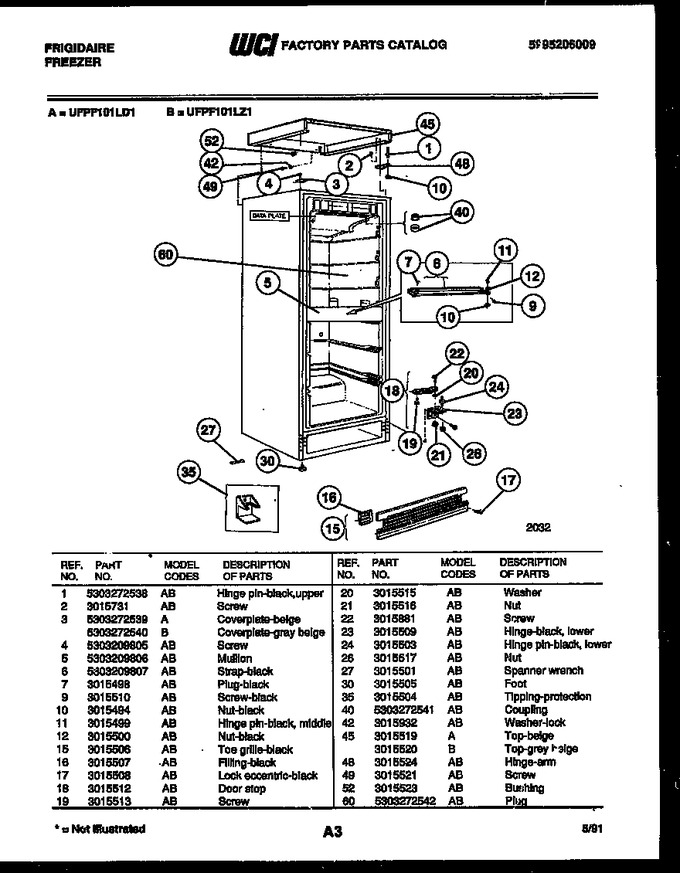

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


05 - System And Control Parts


06 - Shelves And Supports


07 - Ice Maker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303272538		Hinge Pin-black, Upper		Appelez-nous	-
2	3015731		Screw		Appelez-nous	-
3	5303272539		Coverplate-beige		Appelez-nous	-
4	5303209805		Screw		Appelez-nous	-
5	5303209806		Mullion		Appelez-nous	-
6	5303209807		Strap-black		Appelez-nous	-
7	3015498		Plug-black		Appelez-nous	-
9	3015510		Screw-black		Appelez-nous	-
10	3015494		Nut-black		Appelez-nous	-
11	3015499		Hinge Pin-black Middle		Appelez-nous	-
12	3015500		Nut-black		Appelez-nous	-
15	3015506		Toe Grille-black		Appelez-nous	-
16	3015507		Filling-black		Appelez-nous	-
17	3015508		Lock Eccentric Black		Appelez-nous	-
18	3015512		Door Stop		Appelez-nous	-
19	3015513		Screw		Appelez-nous	-
20	3015515		Washer		Appelez-nous	-
21	3015516		Nut		Appelez-nous	-
22	3015881		Screw		Appelez-nous	-
23	3015509		Hinge-black Lower		Appelez-nous	-
24	3015503		Hinge Pin-black Lower		Appelez-nous	-
26	3015517		Nut		Appelez-nous	-
27	3015501		Spanner Wrench		Appelez-nous	-
30	3015505		Foot		Appelez-nous	-
35	3015504		Tipping-protection		Appelez-nous	-
40	5303272541		Coupling		Appelez-nous	-
42	3015932		Washer Lock		Appelez-nous	-
45	3015519		Top-beige		Appelez-nous	-
48	3015524		Hinge-arm		Appelez-nous	-
49	3015521		Screw		Appelez-nous	-
52	3015523		Bushing		Appelez-nous	-
60	5303272542		Plug		Appelez-nous	-
