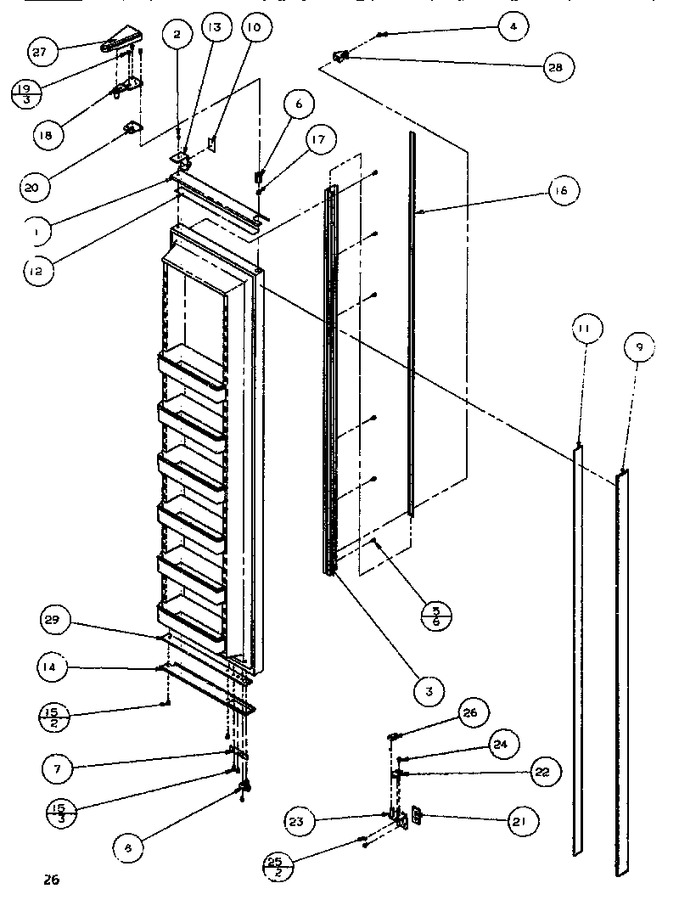

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10348601 | Trim Door Top |
|
- | |||||
| 2 | M0213521 | Screw |
|
- | |||||
| 3 | 10331303 | Handle Frz Door |
|
- | |||||
| 4 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.43 | ||||
| 5 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.71 | |||||
| 6 | 10263802 | Bushing, Door (wht) |
|
- | |||||
| 7 | C8972403 | Stop, Door (blk) |
|
- | |||||
| 8 | R0181181 | Kit,dr Closure (Replaces: D7751402) |
|
Immediately | $ 6.80 | ||||
| 9 | 10348702 | Vertical Trim |
|
- | |||||
| 10 | D7853501 | Nameplate End Cap |
|
- | |||||
| 11 | R0195042 | Double Backed Tape 6ft Roll |
|
- | |||||
| 12 | R0195045 | Double Back Tape 3 Ft |
|
- | |||||
| 13 | D7828005 | Cap, Handle |
|
- | |||||
| 14 | D7830402 | Trim |
|
- | |||||
| 15 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.71 | |||||
| 16 | D7826807 | Gasket Handle |
|
- | |||||
| 17 | 10252902 | Filter Bushing |
|
- | |||||
| 18 | 10185101 | Top Hinge-e Ct |
|
- | |||||
| 19 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 9.52 | |||||
| 20 | B8389001 | Shim, Top Hinge |
|
- | |||||
| 21 | B8386701 | Kit,btm Hinge Shim |
|
- | |||||
| 21 | B8386702 | Kit,btm Hinge Shim |
|
- | |||||
| 21 | B8386703 | Kit,btm Hinge Shim |
|
- | |||||
| 22 | R0181181 | Kit,dr Closure (Replaces: D7748301) |
|
Immediately | $ 6.80 | ||||
| 23 | 10163601 | Bottom Hinge, Frz |
|
- | |||||
| 23 | 10163609 | Hinge Assy Bottom |
|
- | |||||
| 24 | WP489128 | Screw (Replaces: M0220417) |
|
$ 10.26 | |||||
| 25 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 6.80 | |||||
| 26 | B8387701 | Shim, Door Closure |
|
- | |||||
| 26 | B8387702 | Shim, Door Closure |
|
- | |||||
| 27 | D7872106 | Cover Hinge |
|
- | |||||
| 28 | D7828101 | End Cap, Handle Bottom |
|
- | |||||
| 29 | D7871204 | Spacer Bottom Trim |
|
- |
