Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7616648 Trim Fz Shelf Appelez-nous -
2 D7820802 Basket, Frz Appelez-nous -
3 D7781506 Freezer Shelf Pnt Appelez-nous -
4 D7788310 Shelf, Frz Appelez-nous -
5 D7788109 Fz Shelf, Wire Appelez-nous -
6 C8913519 Trim Appelez-nous -
7 C8913609 Trim Appelez-nous -
8 C8973801 Support, Frz Shelf Special Order $ 8.35

9 D7845102 Socket, Lamp Appelez-nous -
10 D7620109 Rack, Ice Appelez-nous -
11 10014708 Shield, Light Appelez-nous -
12 W11384469 Switch, Light   (Replaces: C3680308) In-Stock Immediately $ 35.18

13 D7863903 Housing Freezer Light Appelez-nous -
14 D7620014 Bin-utility Appelez-nous -
15 M0360402 Light Bulb (230/240 Vac) Appelez-nous -
16 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 6.57

17 WPW10190972 Ice Maker, (220 V 50 Hz)   (Replaces: D7846301) Special Order $ 159.74

18 WP841180A Tray, Ice   (Replaces: D7725401) In-Stock Immediately $ 43.06

19 10282301 Glide-fz, L.h. Appelez-nous -
20 10282302 Glide-fz, R.h. Appelez-nous -
21 M0213529 Screw Appelez-nous -
22 C8973701 Plug, Frz Shelf Support Appelez-nous -
23 M0580007 Grommet, Screw Appelez-nous -
24 10341401 Harness Liner Outer Appelez-nous -
25 D7383435 Wire Jumper Appelez-nous -
26 D7820709 Front Basket Appelez-nous -
27 10014707 Shield, Light Appelez-nous -
28 D7297603 Cover, Light Sw Appelez-nous -
29 D7716405 Housing-ref Light Appelez-nous -
30 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 6.57

31 M0219559 Screw Appelez-nous -
32 M0270508 Washer Appelez-nous -
33 WP67001130 Plug   (Replaces: M0310709) In-Stock Immediately $ 7.39

34 D7845101 Socket, Lamp Appelez-nous -
35 A4539626 Pop Rivet Appelez-nous -
36 A4554813 Snap Bushing Appelez-nous -
37 D7844802 Socket Shield Appelez-nous -
38 M0217224 Screw Appelez-nous -
39 M0217225 Screw Appelez-nous -
40 Y10270101 Cover-light Appelez-nous -
41 M0320905 Terminal Ground A Appelez-nous -
42 M0360402 Light Bulb (230/240 Vac) Appelez-nous -
44 10270202 Housing Light Appelez-nous -
45 Y10244001 Harness, Ref Light Appelez-nous -
46 A3189337 Gasket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

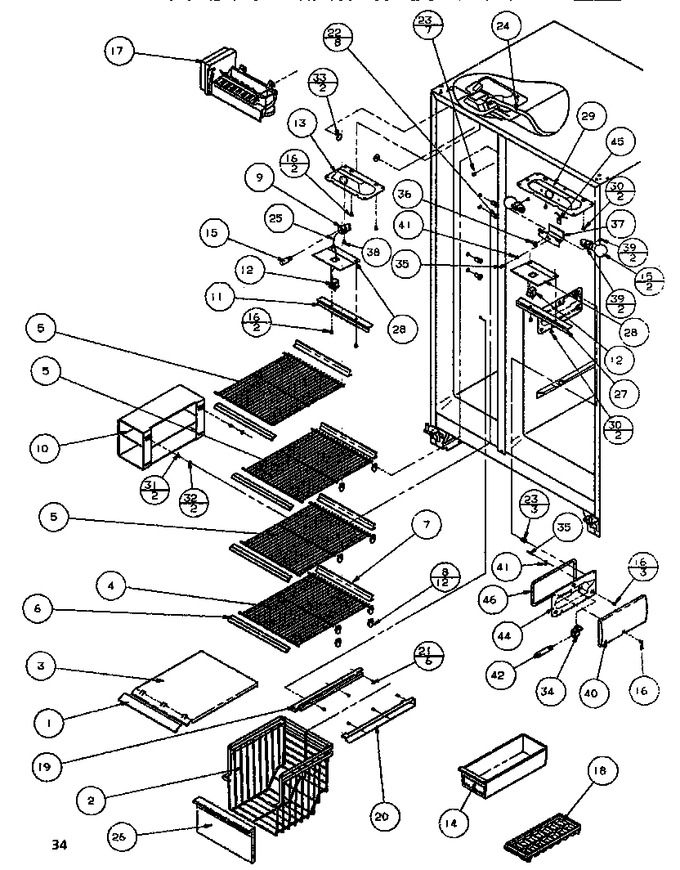

Diagram for SB520K (BOM: P1140701W)
