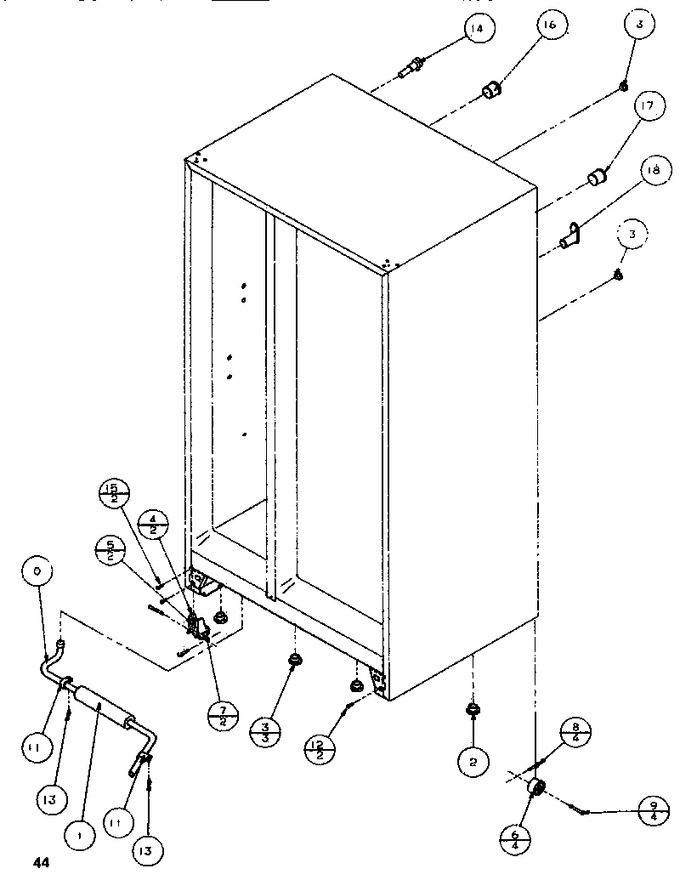

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A0329814 | Tubing Insulation By Inch |
|
- | |||||
| 2 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 3 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 4 | C8742401 | Assy, Roller Bracket |
|
- | |||||
| 5 | M0286708 | Nut, Speed |
|
$ 43.07 | |||||
| 6 | M0520102 | Roller |
|
- | |||||
| 7 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 8 | M1200004 | Cotter Pin K |
|
- | |||||
| 9 | M1200202 | Pin K |
|
- | |||||
| 10 | 10393001 | Tube-drain |
|
- | |||||
| 11 | M0102303 | Clamp |
|
- | |||||
| 12 | M0204339 | Screw Bolt K |
|
- | |||||
| 13 | WP489069 | Screw-sd (Replaces: M0233704) |
|
Immediately | $ 7.56 | ||||
| 14 | 10277304 | Assy, Fill Tube |
|
- | |||||
| 15 | 10093301 | Screw, Adj Roller |
|
- | |||||
| 16 | 10187501 | Tunnel Wire |
|
- | |||||
| 17 | 10187601 | Tunnel Wire |
|
- | |||||
| 18 | C8971902 | Tunnel, Heat Ex. |
|
- | |||||
| NI | C8956101 | Assy, Roller Bracket |
|
- |
