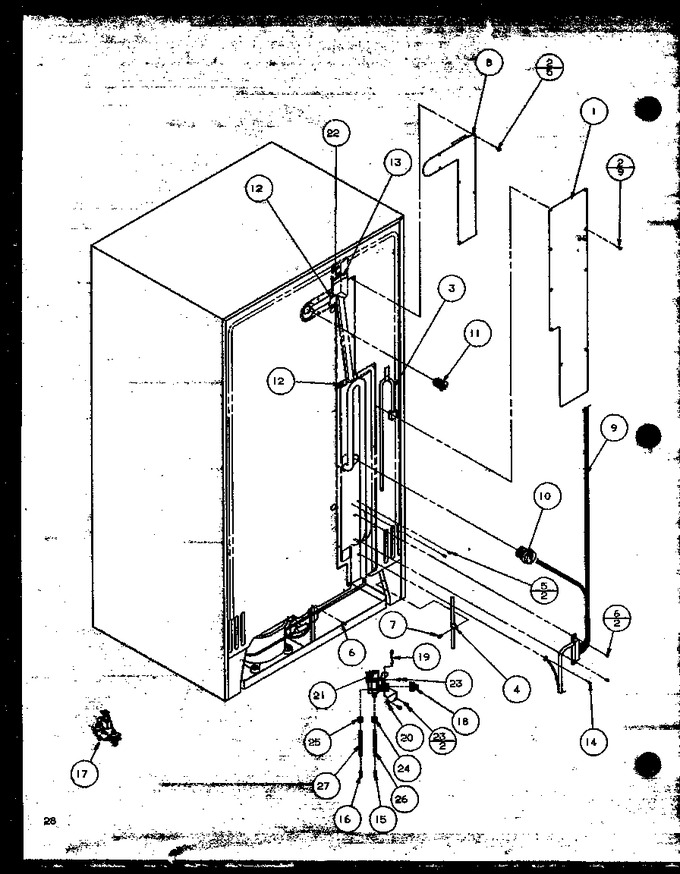

01 - Back Of Unit


02 - Crushed Ice Bucket


03 - Electronic Bracket Assy


04 - Evap And Air Handling


05 - Fz Door


06 - Fz Door


07 - Fz Shelving And Ref Light


08 - Ice And Water Cavity


09 - Ice Maker


10 - Machine Compartment


11 - Ref Door


12 - Ref Door


13 - Ref Shelving And Drawers


14 - Ref/fz Controls And Cabinet Parts


15 - Rollers And Back Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10178402		Cover, O.c.back		Appelez-nous	-
2	WP90767		Screw   (Replaces: M0211216)			Immediately	$ 8.25
3	B8310505		Cord, Power		Appelez-nous	-
4	M0103901		Clamp		Appelez-nous	-
5	WP489399		Screw   (Replaces: M0232903)				$ 7.30
6	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 8.40
7	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
8	10178502		Wire Cover		Appelez-nous	-
9	10268101		Harness Cabinet		Appelez-nous	-
10	10178701		Grommet Wire		Appelez-nous	-
11	10178801		Grommet Wire		Appelez-nous	-
12	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
13	A3189336		Gasket, Foam		Appelez-nous	-
14	M0232317		Screw		Appelez-nous	-
15	A1055101		Spring, Antikink		Appelez-nous	-
16	A1055102		Spring K		Appelez-nous	-
17	A3034801		Saddle Valve		Appelez-nous	-
18	10244901		Coupling		Appelez-nous	-
19	B8374701		Clip, Water Valve		Appelez-nous	-
20	D7701601		Brkt, Water Valve		Appelez-nous	-
21	WPW10245167		Valve, Water   (Replaces: D7742203)				$ 120.73
22	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
23	681390		Screw   (Replaces: M0251015)				$ 13.71
24	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
25	M0753002		Nut, Sleeve		Appelez-nous	-
26	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
27	D7787801		Tank, Coil Water		Appelez-nous	-
