Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10263802 Bushing, Door (wht) Appelez-nous -
2 C8972403 Stop, Door (blk) Appelez-nous -
3 R0181181 Kit,dr Closure   (Replaces: D7751402) In-Stock Immediately $ 7.55

4 D7830002 Trim Appelez-nous -
5 M0213815 Screw Appelez-nous -
6 M0213521 Screw Appelez-nous -
7 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

8 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

9 D7855704 Hinge Assy, Top Appelez-nous -
10 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 10.58

11 WP489128 Screw   (Replaces: M0220417) Special Order $ 11.40

12 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 7.55

13 10163602 Rh Bot Hinge-bk E Ct Appelez-nous -
14 B8386701 Kit,btm Hinge Shim Appelez-nous -
14 B8386702 Kit,btm Hinge Shim Appelez-nous -
14 B8386703 Kit,btm Hinge Shim Appelez-nous -
15 M0233844 Screw, T F Appelez-nous -
16 D7870702 Cover, Hinge Appelez-nous -
17 M0202325 Screw Appelez-nous -
18 D7830102 Trim Appelez-nous -
19 D7830202 Trim Appelez-nous -
20 10331301 Handle, Door Appelez-nous -
21 D7826804 Insert Handle Appelez-nous -
22 10252902 Filter Bushing Appelez-nous -
23 D7828006 Cap Handle Appelez-nous -
24 D7828102 End Cap. Handle Appelez-nous -
25 D7871203 Spacer Bottom Trim Appelez-nous -
26 D7853503 Nameplate, End Cap Appelez-nous -
27 D7866201 Spacer-door Appelez-nous -
30 R0195042 Double Backed Tape 6ft Roll Appelez-nous -
31 10361801 Shim, Dr Bushing Appelez-nous -
32 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

33 B8387702 Shim, Door Closure Appelez-nous -
33 B8387701 Shim, Door Closure Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

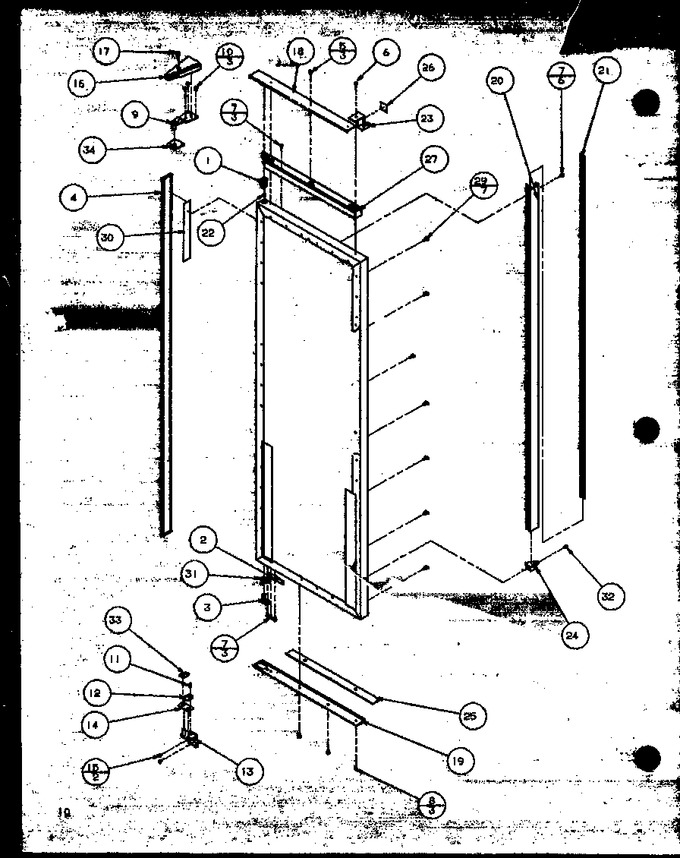

Diagram for SBD20MW (BOM: P1120201W W)
