Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

2 C8972403 Stop, Door (blk) Appelez-nous -
3 R0181181 Kit,dr Closure   (Replaces: D7751401) In-Stock Immediately $ 7.55

4 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

6 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

7 D7855703 Top Hinge Assy Appelez-nous -
8 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 10.58

9 B8386701 Kit,btm Hinge Shim Appelez-nous -
9 B8386702 Kit,btm Hinge Shim Appelez-nous -
9 B8386703 Kit,btm Hinge Shim Appelez-nous -
10 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 7.55

11 10163601 Bottom Hinge, Frz Appelez-nous -
12 WP489128 Screw   (Replaces: M0220417) Special Order $ 11.40

13 M0233844 Screw, T F Appelez-nous -
14 B8387701 Shim, Door Closure Appelez-nous -
14 B8387702 Shim, Door Closure Appelez-nous -
15 D7870701 Cover, Hinge Appelez-nous -
16 M0202325 Screw Appelez-nous -
17 D7830003 Trim Appelez-nous -
18 D7830302 Trim Appelez-nous -
19 D7830402 Trim Appelez-nous -
20 10361801 Shim, Dr Bushing Appelez-nous -
21 10331301 Handle, Door Appelez-nous -
22 D7826804 Insert Handle Appelez-nous -
24 D7828005 Cap, Handle Appelez-nous -
25 D7828101 End Cap, Handle Bottom Appelez-nous -
26 D7871204 Spacer Bottom Trim Appelez-nous -
27 D7853501 Nameplate End Cap Appelez-nous -
28 YD7866301 Spacer-door Appelez-nous -
29 WPB5705307 Tubing Plastic   (Replaces: B5705308) Special Order $ 13.05

31 R0195042 Double Backed Tape 6ft Roll Appelez-nous -
32 M0213815 Screw Appelez-nous -
33 M0213521 Screw Appelez-nous -
34 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

35 10164202 Harness Fz Door Appelez-nous -
36 W11214483 Screw, Mach   (Replaces: M0202321) In-Stock Immediately $ 14.72


    View Diagram in Separate Window     Print Icon   Print Part List

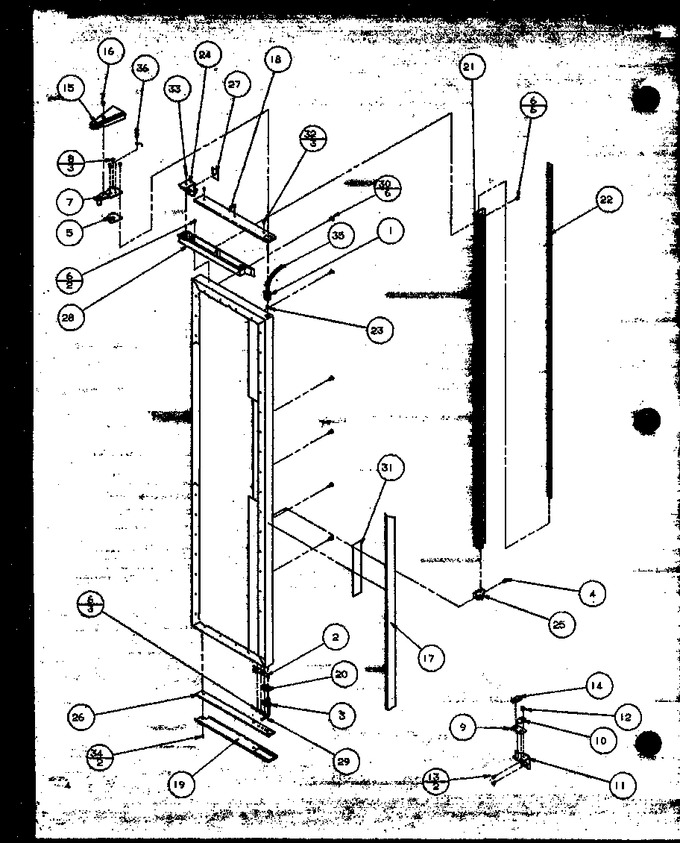

Diagram for SBD20MW (BOM: P1120201W W)
