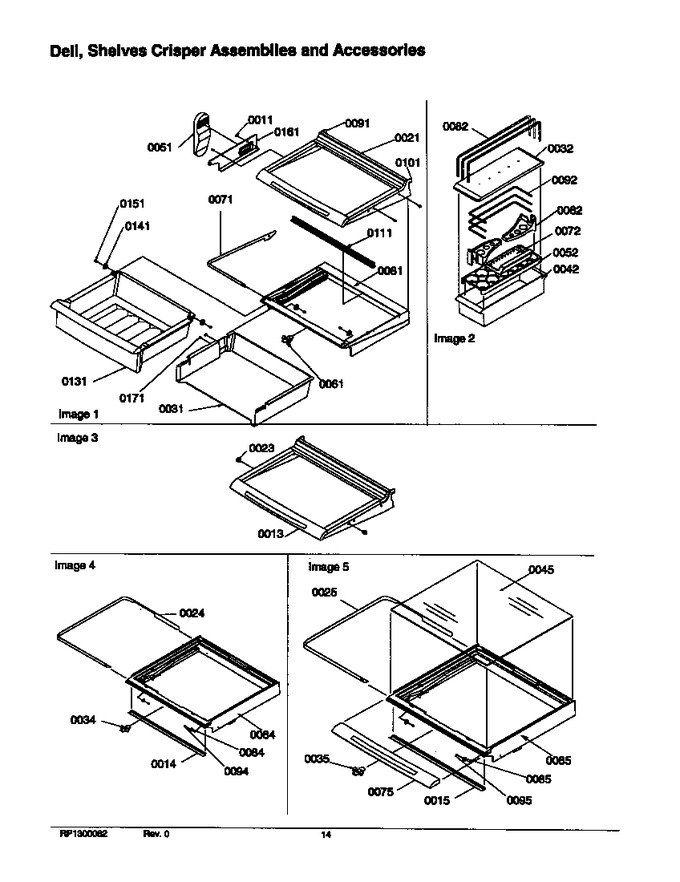

03 - Deli, Shelves Crisper Assemblies & Acs


04 - Drain Systems, Rollers, And Evap Assy


05 - Facade Cover,elec Brkt Assy & Toe Grille


06 - Fz Door


07 - Fz Shelves And Lights


08 - Ice Bucket Auger And Ice Maker Parts


09 - Ice Maker/control Assy


10 - Machine Compartment & Muffler Assy


11 - Ref Door & Door Trim And Handles


12 - Ref/fz Lights And Hinges


13 - Water Filter Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	M0213129		Screw		Appelez-nous	-
13	10809529		Shelf, Full Glide		Appelez-nous	-
14	10968801		Seal-crisp Front		Appelez-nous	-
15	10968801		Seal-crisp Front		Appelez-nous	-
21	10809523		Shelf, Full Glide		Appelez-nous	-
23	10875101		Stop, Shelf		Appelez-nous	-
24	10882701		Band, Crisper		Appelez-nous	-
25	10882702		Band-crisper		Appelez-nous	-
31	10783901		Sleeve,deli		Appelez-nous	-
32	10436404		Lid, Utility				$ 60.85
34	10852501		Slide, Crisper/deli		Appelez-nous	-
35	10852501		Slide, Crisper/deli		Appelez-nous	-
42	10423129		Bin-utility		Appelez-nous	-
45	Y10370065		Glass-shelf		Appelez-nous	-
51	10872701		Gasket, Deli		Appelez-nous	-
52	10436506		Tray, Egg				$ 8.28
61	10852501		Slide, Crisper/deli		Appelez-nous	-
62	12103905		Snugger, Door Shelf		Appelez-nous	-
64	10782901		Frame,crisper		Appelez-nous	-
65	10783001		Frame-crisper		Appelez-nous	-
71	10986402		Band-deli		Appelez-nous	-
72	10310901		Tray, Butter		Appelez-nous	-
75	12113003		Trim-crisper Fr		Appelez-nous	-
81	10783702		Frame, Deli		Appelez-nous	-
82	12310201		Retainer, Ref Bucket		Appelez-nous	-
84	10481001		Roller, Pan				$ 10.99
85	10481001		Roller, Pan				$ 10.99
91	10809915		Rail, L Blank Side		Appelez-nous	-
92	12310203		Retainer, Frz Bucket		Appelez-nous	-
94	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
95	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
101	10809916		Rail, R Blank Side		Appelez-nous	-
111	10873801		Extrn.-rear Deli		Appelez-nous	-
131	10784101		Pan,deli		Appelez-nous	-
141	10481001		Roller, Pan				$ 10.99
151	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
161	10872601		Manifold, Deli		Appelez-nous	-
171	M0051701		Pad-bumper		Appelez-nous	-
