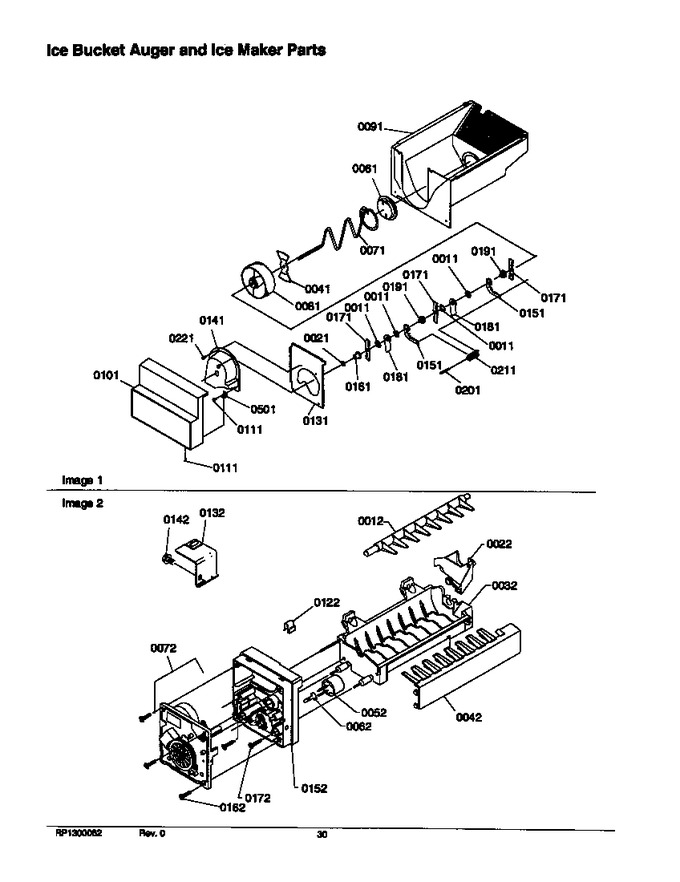

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10275101		Washer, Waved		Appelez-nous	-
12	WP627843		Ejector   (Replaces: R0183119)				$ 87.78
21	WPM0223101		Nut, Locking   (Replaces: M0223101)				$ 8.06
22	WP628356		Cup, Water Fill/bearing   (Replaces: R0156839)				$ 53.75
32	Y00000000		See Note Mold And Heater Assembly -- (order D7824705 Ice Maker)		Appelez-nous	-
41	10113801		Bar, Crsh Ice Bucket				$ 4.96
42	WP2182124		Stripper, Ice   (Replaces: R0183120)				$ 90.35
52	Y00000000		See Note Thermostat -- (order D7824705 Ice Maker)		Appelez-nous	-
61	WPD7749401		Cap, Helix End   (Replaces: D7749401)				$ 29.01
62	WP2315522		Retainer   (Replaces: R0191094)				$ 11.60
71	10114401		Agitator, Ice				$ 107.74
72	Y00000000		See Note Module And Motor Assembly -- (order D7824705 Ice Maker)		Appelez-nous	-
81	10114703		Wheel, Crsh Ice		Appelez-nous	-
91	10111905		Bucket, Crushed Ice				$ 104.60
101	10870904		Front-ci Bucket		Appelez-nous	-
111	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
122	WP628379		Clip, Thermal Fuse   (Replaces: 10319801)				$ 11.10
131	10115001		Front, Ice Crusher				$ 25.55
132	WP2256087		Brkt, Ice Maker   (Replaces: B8391803)				$ 97.65
141	10114004		Cover, Blade		Appelez-nous	-
142	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
151	10114601		Blade, Static		Appelez-nous	-
152	WP2195914		Support   (Replaces: R0183121)				$ 109.80
161	10113901		Spacer, Cover		Appelez-nous	-
162	R0186041		Screw		Appelez-nous	-
171	10114501		Blade, Rotating		Appelez-nous	-
172	R0186040		Screw		Appelez-nous	-
181	10275201		Damper, Ice		Appelez-nous	-
191	10114301		Washer Stepped		Appelez-nous	-
201	M1200108		Pin, Roll		Appelez-nous	-
211	10114101		Anchor, Blade		Appelez-nous	-
221	M0231704		Screw, Tf		Appelez-nous	-
501	10894901		Brkt, Cover Mtg.		Appelez-nous	-
NI	WP12740302		Crushed Ice Agitator Assy   (Replaces: R0156803)				$ 529.58
NI	10834701		Label, Im		Appelez-nous	-
