SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves Crisper Assemblies & Acs


04 - Drain Systems, Rollers, And Evap Assy

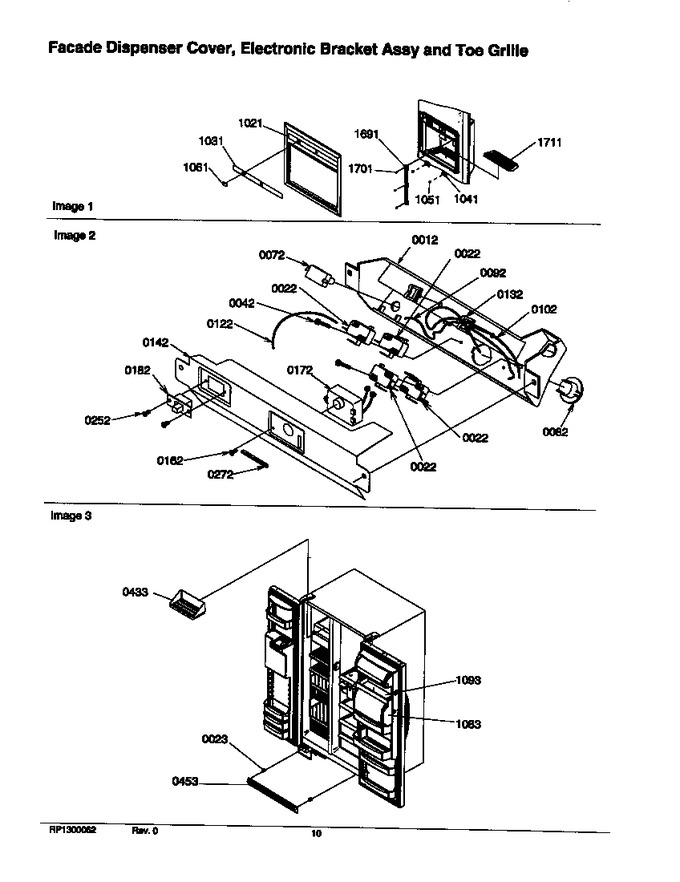

05 - Facade Cover,elec Brkt Assy & Toe Grille


06 - Fz Door


07 - Fz Shelves And Lights


08 - Ice Bucket Auger And Ice Maker Parts


09 - Ice Maker/control Assy


10 - Machine Compartment & Muffler Assy


11 - Ref Door & Door Trim And Handles


12 - Ref/fz Lights And Hinges


13 - Water Filter Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10323305		Bracket, Elec Mtg		Appelez-nous	-
22	12419601		Switch, Limit		Appelez-nous	-
23	M0117303		Clip, Grille				$ 5.65
42	M0237809		Screw, T.f.		Appelez-nous	-
72	10166101		Switch-light Cavity				$ 6.49
82	10131702		Socket, Light		Appelez-nous	-
92	D7726590		Wire-jumper		Appelez-nous	-
102	D7726593		Wire Jumper		Appelez-nous	-
122	D7726592		Wire-jumper		Appelez-nous	-
132	B5667304		Wire Clip		Appelez-nous	-
142	10131801		Cover-elect Brkt		Appelez-nous	-
162	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
172	D7854104		Switch-photosensitive		Appelez-nous	-
182	10166002		Switch-crushed/cube		Appelez-nous	-
252	W11084238		Screw   (Replaces: M0234001)		Appelez-nous	-
272	A3030365		Gasket		Appelez-nous	-
433	10870802		Shelf, Ice Cream		Appelez-nous	-
453	12321807		Assy, Toe Grille (white)		Appelez-nous	-
1021	12314901		Facade, W-dispenser		Appelez-nous	-
1031	10984648		Insert, Facade (white)		Appelez-nous	-
1041	C8992901		Clip		Appelez-nous	-
1051	M0216517		Screw		Appelez-nous	-
1061	12043806		Cap-white Switch		Appelez-nous	-
1083	12424301		Assy, Chiller		Appelez-nous	-
1093	12309402		Shelf, Snack		Appelez-nous	-
1711	D7750603		Grille, Sump (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
