Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

2 WPB5705307 Tubing Plastic   (Replaces: B5705308) Special Order $ 13.05

3 C8972401 Stop, Door (blk) Appelez-nous -
4 R0181181 Kit,dr Closure   (Replaces: D7751401) In-Stock Immediately $ 7.55

5 M0213521 Screw Appelez-nous -
6 D7830004 Trim Vertical Appelez-nous -
7 D7830303 Trim Fr Dr Top Appelez-nous -
8 D7830403 Trim Fr Dr. Bottom Appelez-nous -
9 M0210305 Screw Appelez-nous -
10 M0219717 Screw Appelez-nous -
11 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

12 R0195038 Tape, Double Back, Trim Door T Appelez-nous -
13 D7757803 Top Hinge Assy Appelez-nous -
14 D7789502 Cover, Hinge Appelez-nous -
15 M0202325 Screw Appelez-nous -
16 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 10.58

17 B8384101 Connector-6 Pin Appelez-nous -
18 W11214483 Screw, Mach   (Replaces: M0202321) In-Stock Immediately $ 14.72

19 D7748101 Harness Appelez-nous -
20 B8386702 Kit,btm Hinge Shim Appelez-nous -
20 B8386703 Kit,btm Hinge Shim Appelez-nous -
20 B8386701 Kit,btm Hinge Shim Appelez-nous -
21 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 7.55

22 D7757705 Hinge Assy Appelez-nous -
23 WPW10068250 Screw   (Replaces: M0202530) Special Order $ 4.27

24 M0246258 Screw Appelez-nous -
25 B8387702 Shim, Door Closure Appelez-nous -
26 B8387701 Shim, Door Closure Appelez-nous -
27 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

28 A3012530 Tubing Plastic Appelez-nous -
29 D7826704 D7826705 Appelez-nous -
30 D7826801 Gasket, Handle Appelez-nous -
31 D7826901 Top Strip Appelez-nous -
32 D7828003 Cap Handle Appelez-nous -
33 D7828103 End Cap, Handle Appelez-nous -
34 D7871202 Spacer, Bottom Trim Appelez-nous -
35 D7853504 End Cap, Nameplate Appelez-nous -
36 D7826502 Strip, Trim Top Appelez-nous -
37 M0211005 Screw Appelez-nous -
38 M0242918 Screw Appelez-nous -
NOTE: Note: Ref. No. 1, Refrigerator Door Pan Doesn`t Include Door Stop Mounting Nut,tap Strip And Handle Supports (ref. Nos. 2, 24 On Previous Page). Order Separat Appelez-nous -
NI R0164235 Door Hinge Assy Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

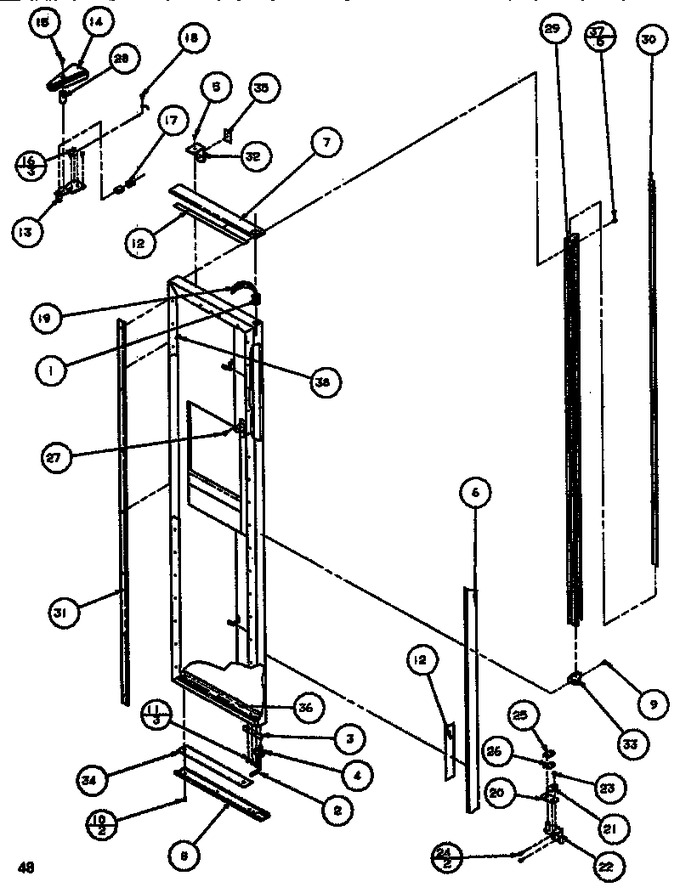

Diagram for SBDT520J (BOM: P7845303W W)
