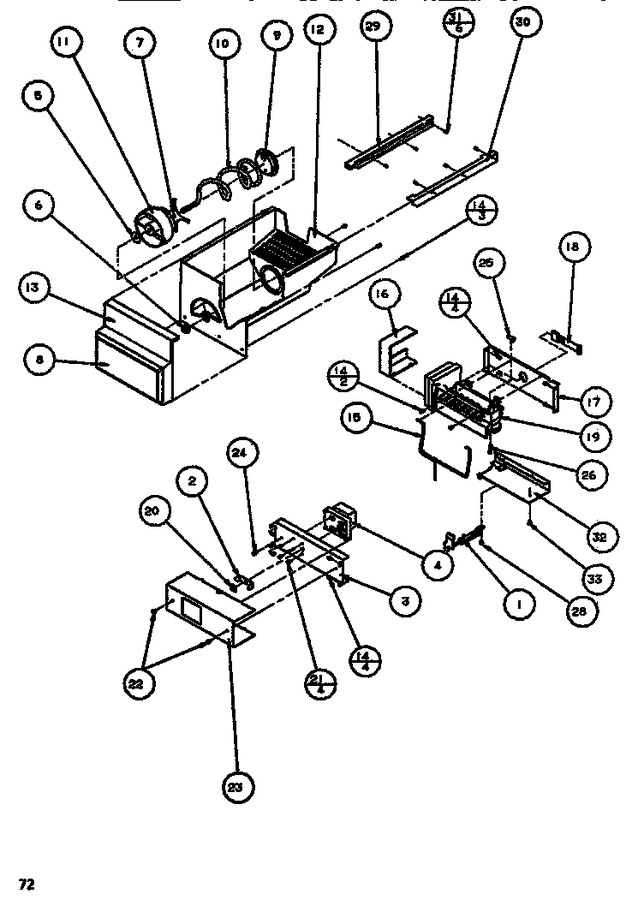

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8980402		I.m. Shut Off Assy		Appelez-nous	-
2	D7849501		Driver		Appelez-nous	-
3	D7749203		Support,auger Motor		Appelez-nous	-
4	D7847001		Motor - Auger		Appelez-nous	-
5	A1061701		Washer		Appelez-nous	-
6	B8385101		Nut-helix		Appelez-nous	-
7	C8964101		Bar, Breaker		Appelez-nous	-
8	C8975308		Insert, Bucket		Appelez-nous	-
9	WPD7749401		Cap, Helix End   (Replaces: D7749401)				$ 29.01
10	D7749501		Helix		Appelez-nous	-
11	D7749601		Wheel Lift		Appelez-nous	-
12	D7749704		Bucket, Ice V		Appelez-nous	-
13	D7749802		Front, Bucket		Appelez-nous	-
14	67006425		Screw   (Replaces: M0230917)			Immediately	$ 7.30
15	D7877001		Arm,ice Maker Shut Off		Appelez-nous	-
16	D7820401		Cover Im		Appelez-nous	-
18	D7843601		Harness, Im		Appelez-nous	-
19	WPW10190972		Ice Maker, (220 V 50 Hz)   (Replaces: D7846301)				$ 177.49
20	M0120501		Nut		Appelez-nous	-
21	M0202528		Screw		Appelez-nous	-
22	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
23	D7788807		Cover Auger Motor		Appelez-nous	-
24	M0253916		Screw		Appelez-nous	-
25	B5720301		Clip		Appelez-nous	-
26	WP628379		Clip, Thermal Fuse   (Replaces: B8389801)				$ 11.10
28	M0211118		Screw, Sm		Appelez-nous	-
29	D7849901		Driver		Appelez-nous	-
30	D7849902		Glide, Freezer Rh		Appelez-nous	-
31	M0213529		Screw		Appelez-nous	-
32	D7846201		Shield Im		Appelez-nous	-
33	M0211116		Screw, Sm		Appelez-nous	-
