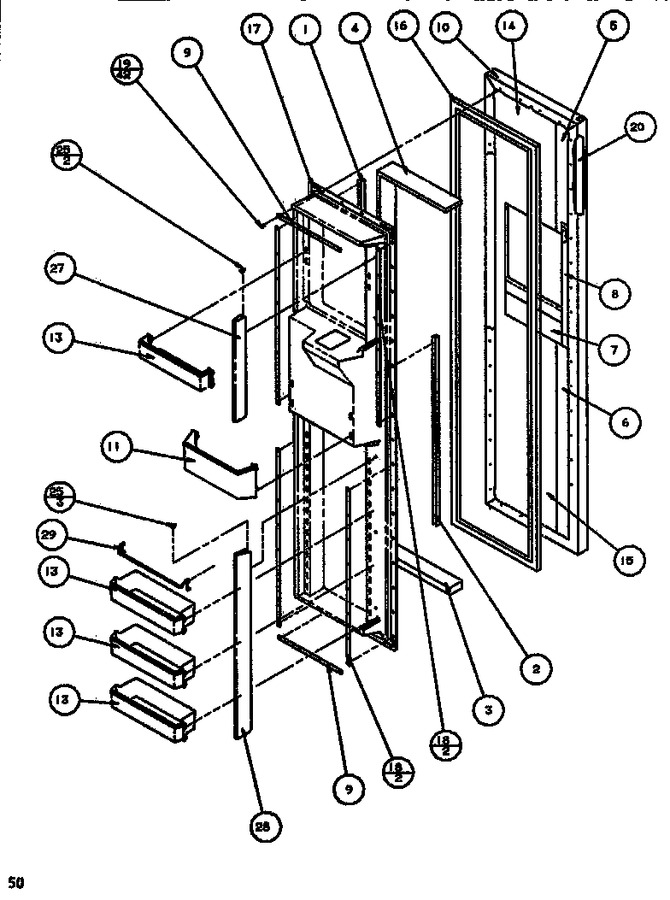

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8987101		Seal, Door Dike		Appelez-nous	-
2	C8987103		Seal, Door Dike		Appelez-nous	-
3	B0523562		Insul. By The Ft.		Appelez-nous	-
4	B0523583		Insulation, Per Ft.		Appelez-nous	-
5	B5629049		Insulation		Appelez-nous	-
6	B5629050		Insulation		Appelez-nous	-
7	B5629048		Insulation		Appelez-nous	-
8	B5629051		Insulation		Appelez-nous	-
9	C8982801		Retainer, Door Liner		Appelez-nous	-
10	D7845721		Door, Frz. W		Appelez-nous	-
10	D7845722		Door Fz. L		Appelez-nous	-
11	D7783504		Shelf, Frz Dr. Half		Appelez-nous	-
13	D7827305		Shelf, Frz Door		Appelez-nous	-
14	D7800406		Foam Slab Door		Appelez-nous	-
15	D7800407		Foam Slab Door		Appelez-nous	-
16	D7870904		Gasket (w Frz Dr)		Appelez-nous	-
17	D7829402		Liner I & W Frz Door		Appelez-nous	-
18	D7828601		Retainer, Door Liner		Appelez-nous	-
19	M0219717		Screw		Appelez-nous	-
20	C8964201		Tube, Protective		Appelez-nous	-
25	C8986801		Clip, Door Dike		Appelez-nous	-
27	D7837902		Rem Dike I & W Upper		Appelez-nous	-
28	D7837904		Removable Dike I & W		Appelez-nous	-
29	D7838202		Retainer, Package		Appelez-nous	-
