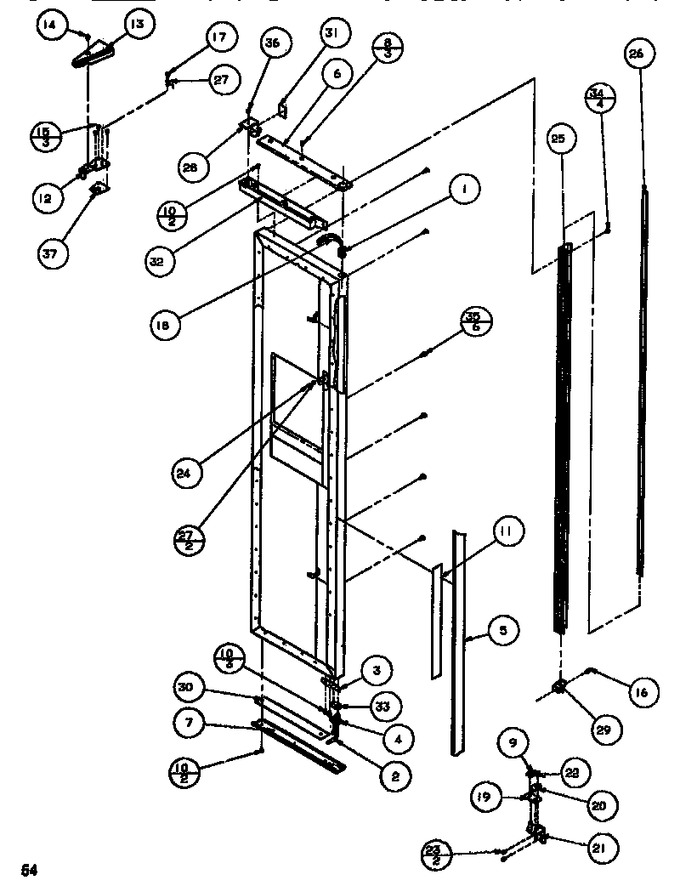

SBDT520M (BOM: P1164101W W) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	WP67004977	Bushing, Top (Replaces: C8964401)			$ 8.20
2	WPB5705307	Tubing Plastic (Replaces: B5705308)			$ 13.05
3	C8972403	Stop, Door (blk)	Appelez-nous	-
4	R0181181	Kit,dr Closure (Replaces: D7751401)		Immediately	$ 7.55
5	D7830003	Trim	Appelez-nous	-
6	D7830302	Trim	Appelez-nous	-
7	D7830402	Trim	Appelez-nous	-
8	M0213815	Screw	Appelez-nous	-
9	B8387701	Shim, Door Closure	Appelez-nous	-
9	B8387702	Shim, Door Closure	Appelez-nous	-
10	WP98165	Screw, Sm (Replaces: M0211018)			$ 8.57
11	R0195042	Double Backed Tape 6ft Roll	Appelez-nous	-
12	D7855703	Top Hinge Assy	Appelez-nous	-
13	D7870701	Cover, Hinge	Appelez-nous	-
14	M0202325	Screw	Appelez-nous	-
15	R9800670	Kit, Screw (Replaces: M0226331)			$ 10.58
16	WP90767	Screw, Sm (Replaces: M0211016)		Immediately	$ 8.25
17	W11214483	Screw, Mach (Replaces: M0202321)		Immediately	$ 14.72
18	10487601	Harness, Freezer Door	Appelez-nous	-
19	10399502	Kit,btm Hinge Shim	Appelez-nous	-
19	10399501	Kit,btm Hinge Shim	Appelez-nous	-
20	R0181181	Kit,dr Closure (Replaces: D7748301)		Immediately	$ 7.55
21	10163601	Bottom Hinge, Frz	Appelez-nous	-
22	WP489128	Screw (Replaces: M0220417)			$ 11.40
23	WP67006715	Screw (Replaces: M0233847)			$ 7.55
24	WP489399	Screw (Replaces: M0232903)			$ 7.30
25	10331301	Handle, Door	Appelez-nous	-
26	D7826804	Insert Handle	Appelez-nous	-
27	M0272803	Lock Washer	Appelez-nous	-
28	D7828005	Cap, Handle	Appelez-nous	-
29	D7828101	End Cap, Handle Bottom	Appelez-nous	-
30	D7871204	Spacer Bottom Trim	Appelez-nous	-
31	D7853501	Nameplate End Cap	Appelez-nous	-
32	YD7866301	Spacer-door	Appelez-nous	-
33	10361801	Shim, Dr Bushing	Appelez-nous	-
34	67006425	Screw, Sm (Replaces: M0211019)		Immediately	$ 7.30
35	10281001	Grommet, Screw	Appelez-nous	-
36	M0213521	Screw	Appelez-nous	-
37	B8389001	Shim, Top Hinge	Appelez-nous	-
