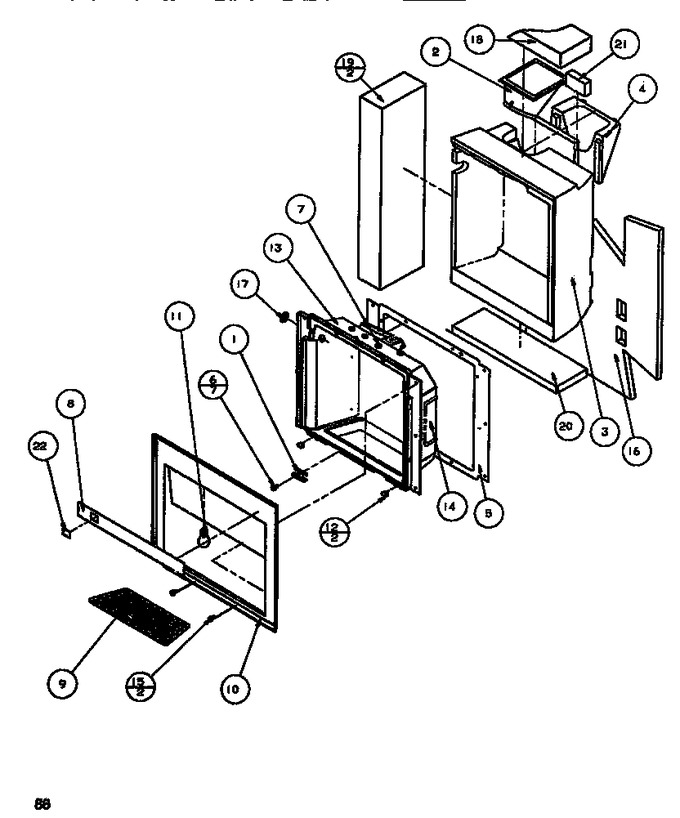

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8992901		Clip		Appelez-nous	-
2	D7750702		Ice, Chute		Appelez-nous	-
3	D7789602		Insulation I & W Cav.		Appelez-nous	-
4	D7790901		Insul I & W Cavity		Appelez-nous	-
5	D7791002		Gasket Cavity		Appelez-nous	-
6	M0216517		Screw		Appelez-nous	-
7	M0274701		Retainer, Ring		Appelez-nous	-
8	D7842240		Membrane, Facade		Appelez-nous	-
8	D7842244		Thin Plate Facade White		Appelez-nous	-
9	D7750606		Grille Sump Blk		Appelez-nous	-
10	D7877532		Facade, Dispenser		Appelez-nous	-
11	M0360401		Light Bulb (220/250) 6 Watt		Appelez-nous	-
12	B8390301		Clip, Facade		Appelez-nous	-
13	10198005		Cavity Dispenser		Appelez-nous	-
14	10295902		Heater, Cavity		Appelez-nous	-
15	M0217701		Screw		Appelez-nous	-
16	10220201		Insulation Batt		Appelez-nous	-
17	M0311401		Plug Button		Appelez-nous	-
18	B5629053		Insulation Batt		Appelez-nous	-
19	10270904		Insulation Batt		Appelez-nous	-
20	B5629054		Insulation Batt		Appelez-nous	-
21	B5629058		Insulation Batt		Appelez-nous	-
22	10492501		Cap, Switch		Appelez-nous	-
