Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10284204LQ Rf Dr Fm As Alm Cfc11 Appelez-nous -
1 10284204WQ Ref Door Foam Assembly, White Appelez-nous -
2 D7828203 Inner Door, Ref Appelez-nous -
3 D7783308 Bucket, Ref Door Appelez-nous -
4 D7783408 Shelf, Ref. Door Appelez-nous -
6 C8987104 Seal, Door Dike Appelez-nous -
7 B0523562 Insul. By The Ft. Appelez-nous -
8 10359701 Gasket, Door (w Ref) Appelez-nous -
9 M0219730 Screw Special Order $ 7.65

10 D7781202 Module-dairy Appelez-nous -
11 D7781313 Door Dairy Appelez-nous -
12 D7806405 Container Sec. Ser. Appelez-nous -
13 D7814606 Snugger-dr Shelf Appelez-nous -
14 10310901 Tray, Butter Appelez-nous -
15 D7695615 Bucket, Egg Appelez-nous -
16 D7805908 Cover, Egg Bucket Appelez-nous -
NI B8391204 Trim Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

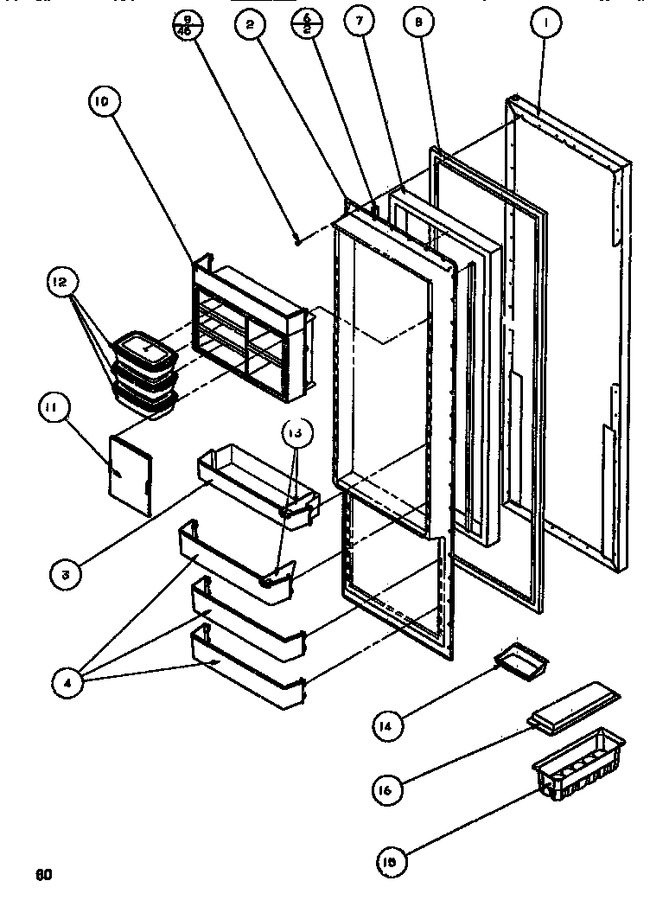

Diagram for SBDT520M (BOM: P1164101W W)
