Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10470302 Assy, Toe Grille (white) Appelez-nous -
21 M0117303 Clip, Grille Special Order $ 5.65

31 R0195042 Double Backed Tape 6ft Roll Appelez-nous -
41 10871111 Cap, Ref Handle Top (gray) Appelez-nous -
41 10871101 Cap, W Ref Handle Top Appelez-nous -
41 10871105 Cap, Ref Handle Top(blk) Appelez-nous -
51 10871106 Cap-e Fz Hndl Top Appelez-nous -
51 10871102 Cap-w Fz Hndl Top Appelez-nous -
51 10871112 Cap-gy Fz Hndl Top Appelez-nous -
61 M0213517 Screw K Appelez-nous -
81 10494407 Trim, Ref Dr Top (stnl) Appelez-nous -
81 10494413 Trim, Refr Dr Top Appelez-nous -
81 10494406 Trim- E Ref Dr Top Appelez-nous -
91 10494204 Trim-w Fz Dr Top Appelez-nous -
91 10494206 Trim-e Fz Dr Top Appelez-nous -
91 10494207 Trim, Frz Dr Top (stnl) Appelez-nous -
101 R0195044 Tape, Adhesive 9 Ft Roll Appelez-nous -
121 10871211 Cap, Ref Handle Bot(gray) Appelez-nous -
121 10871205 Cap, Ref Handle Bot(black) Appelez-nous -
121 10871201 Cap, Ref Handle Bot(white) Appelez-nous -
131 10871202 Cap-w Fz Hndl Bot. Appelez-nous -
131 10871206 Cap- E Fz Hndl Bot. Appelez-nous -
131 10871212 Cap-gy Fz Hndl Bot Appelez-nous -
141 12106221 Handle, Ref Dr (sil) Appelez-nous -
141 12106209 Handle, Ref Dr (white) Appelez-nous -
141 12106213 Handle, Ref Dr (ebony) Appelez-nous -
151 10945933 Insert-w Handle Appelez-nous -
151 10945937 Insert-w Hndl Appelez-nous -
151 10945944 Insert-handle Appelez-nous -
151 10945943 Insert-handle Appelez-nous -
161 10602609 Trim, Ref Dr Bot (stnl) Appelez-nous -
161 10602605 Trim, Refrig Door (bottom) Appelez-nous -
161 10602618 Trim, Ref Dr Bot Appelez-nous -
171 10602505 Trim, Frz Door (bottom) Appelez-nous -
171 10602508 Trim, Frz Dr Bot (stnl) Appelez-nous -
171 10602514 Trim, Frz Dr Bot W Appelez-nous -
181 C8972405 Stop-w Door Appelez-nous -
181 C8972404 Stop, Satin Door Appelez-nous -
301 10234611 Spacer-ref Appelez-nous -
311 10234613 Spacer, Frz Panel Appelez-nous -
321 10234614 Spacer, Frz Lw Pnl Appelez-nous -
331 12106217 Handle, Frz Dr (ebony) Appelez-nous -
331 12106215 Handle, Frz Dr (white) Appelez-nous -
331 12106223 Handle, Frz Dr (sil) Appelez-nous -
361 10096940 Panel-white Appelez-nous -
361 10096944 Panel-black Appelez-nous -
371 10096949 Panel-black Appelez-nous -
371 10096945 Panel-white Appelez-nous -
381 10096986 Panel-e Fz Lw Appelez-nous -
381 10096983 Panel-w Fz Lw Appelez-nous -
391 10494523 Trim, Vert Appelez-nous -
391 10494508 Trim, Vertical (black) Appelez-nous -
391 10494501 Trim, Vert (refr) Appelez-nous -
391 10494507 Trim, Vertical (black) Appelez-nous -
391 10494502 Trim, Vert (frz) Appelez-nous -
391 10494524 Trim, Vert Appelez-nous -
401 10504213 Cover, Hinge(lh) Appelez-nous -
401 10504215 Cover, Hinge Appelez-nous -
401 10504218 Cover Hinge Appelez-nous -
401 10504217 Hinge- Cover Lh Gray Appelez-nous -
401 10504216 Cover, Hinge Appelez-nous -
401 10504214 Cover, Hinge(rh) Appelez-nous -
671 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

NI 10112408 Trim-oc Appelez-nous -
NI 10112409 Trim-oc Appelez-nous -
NI 10112410 Trim-oc Appelez-nous -
NI 10112411 Trim-oc Appelez-nous -
NI 10112412 Trim-oc Appelez-nous -
NI B8391224 Ret-w Dec Pan Appelez-nous -
NI B8391225 Ret-e Dec.panel Appelez-nous -
NI B8391223 Retainer-dec Pan Appelez-nous -
NI 10112405 Trim-oc Appelez-nous -
NI M0202514 Screw Appelez-nous -
NI R0195037 Tape Kit Appelez-nous -
NI A3049001 Gusset-bezel Appelez-nous -
NI 10112406 Trim-oc Appelez-nous -
NI 10112404 Trim-oc Appelez-nous -
NI 10112407 Trim-oc Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

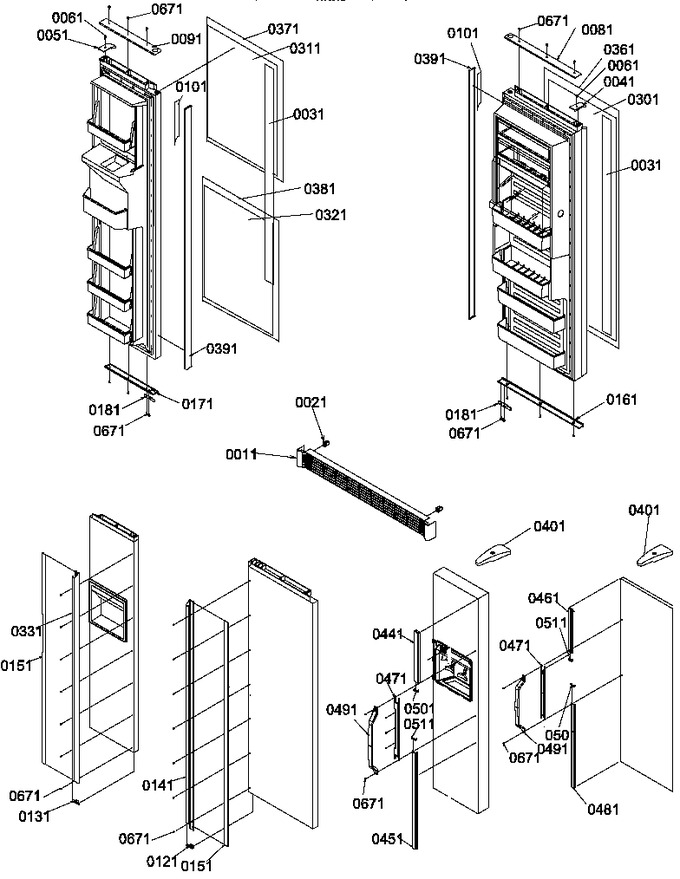

Diagram for SBDX520TW (BOM: P1308402W W)
