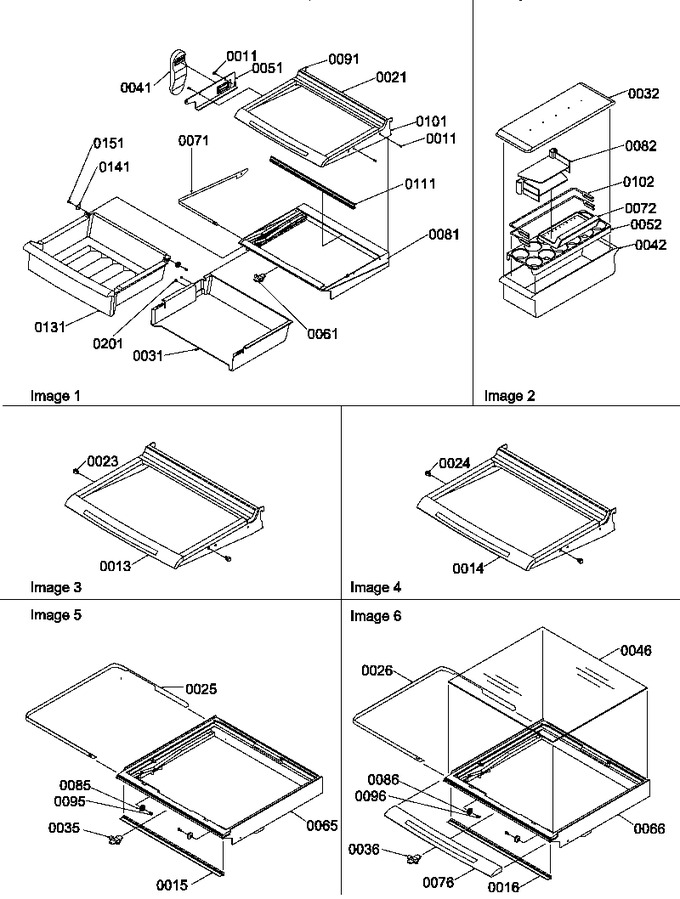

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	M0238229		Screw		Appelez-nous	-
13	10809520		Shelf Full Glide		Appelez-nous	-
15	10968801		Seal-crisp Front		Appelez-nous	-
16	10968801		Seal-crisp Front		Appelez-nous	-
21	10809524		Shelf, Full Glide		Appelez-nous	-
23	10875101		Stop, Shelf		Appelez-nous	-
25	10882701		Band, Crisper		Appelez-nous	-
26	10882702		Band-crisper		Appelez-nous	-
32	10436404		Lid, Utility				$ 60.85
35	10852501		Slide, Crisper/deli		Appelez-nous	-
36	10852501		Slide, Crisper/deli		Appelez-nous	-
42	10423128		Bin-utility		Appelez-nous	-
46	Y10370065		Glass-shelf		Appelez-nous	-
52	10436505		Tray, Egg		Appelez-nous	-
65	10782901		Frame,crisper		Appelez-nous	-
66	10783001		Frame-crisper		Appelez-nous	-
72	10310901		Tray, Butter		Appelez-nous	-
76	12113003		Trim-crisper Fr		Appelez-nous	-
81	10783702		Frame, Deli		Appelez-nous	-
82	10169004		Snugger, Shelf		Appelez-nous	-
85	10481001		Roller, Pan				$ 10.99
86	10481001		Roller, Pan				$ 10.99
91	10809915		Rail, L Blank Side		Appelez-nous	-
95	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
96	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
101	10809916		Rail, R Blank Side		Appelez-nous	-
131	10784101		Pan,deli		Appelez-nous	-
141	10481001		Roller, Pan				$ 10.99
151	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
