SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts And Toe Grille


03 - Fz Door


04 - Fz Shelves And Light


05 - Handles, Trim, And Toe Grille Kits


06 - Ice & Water Cavity & Elec Brkt Assy


07 - Ice Bucket Auger, Im, & Im Parts


08 - Ice Maker/control Assy


09 - Machine Compartment


10 - Ref Door


11 - Ref/fz Shelves, Lights, And Hinges

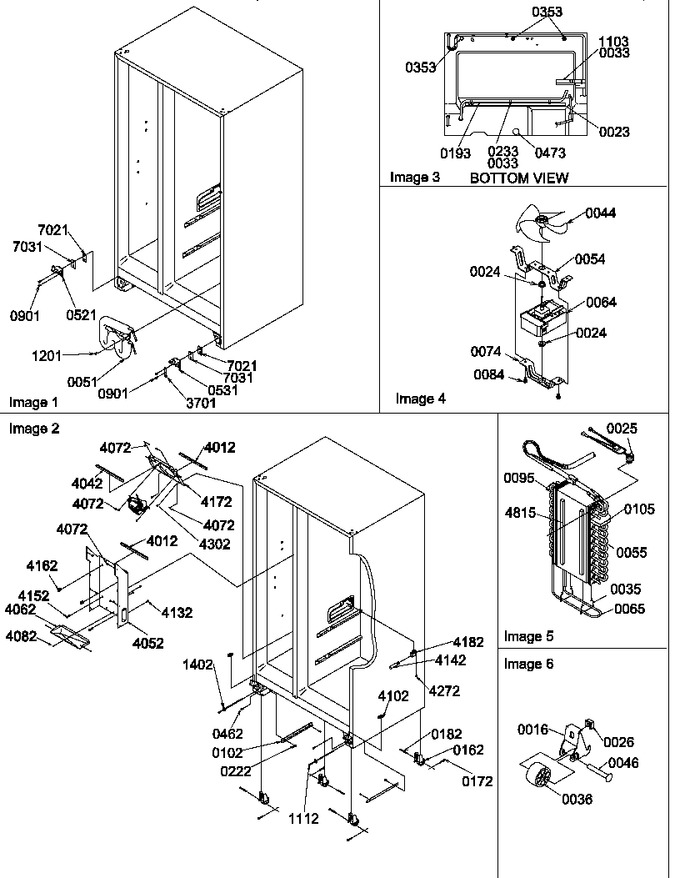

12 - Rollers, Hinges, And Evap Assemblies


13 - Shelves, Deli, And Crisper Assemblies


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	C8742401		Assy, Roller Bracket		Appelez-nous	-
23	10906506		Insul., Oc Bot		Appelez-nous	-
24	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
25	12017820		Thermostat		Appelez-nous	-
26	M0286708		Nut, Speed				$ 47.85
33	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
35	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 148.18
36	WP10450603		Roller   (Replaces: 10450602)				$ 8.27
44	WP12059901		Fan-evap/5.250 Blade   (Replaces: 12059901)				$ 19.67
46	M1205302		Rivet				$ 5.85
51	10988502		Tank-water		Appelez-nous	-
54	10656102		Brkt-mtr Mt/up		Appelez-nous	-
55	R0170057		Assy,low Side		Appelez-nous	-
64	WP10513804		Motor-evap Fanr0161090c, 50hz)   (Replaces: 10513805)				$ 256.76
65	WP10428406		Heater, Evap. (230 Vac)   (Replaces: 10428406)				$ 100.32
74	10909401		Brkt, Mtr Mt		Appelez-nous	-
84	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
95	10629601		Block, Air Coil (left)		Appelez-nous	-
102	C8913701		Support, Mc		Appelez-nous	-
105	10629001		Block, Air Coil (right)		Appelez-nous	-
162	C8956101		Assy, Roller Bracket		Appelez-nous	-
172	M1200004		Cotter Pin K		Appelez-nous	-
182	M1200202		Pin K		Appelez-nous	-
193	12142001		Tube-drain		Appelez-nous	-
222	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
233	M0102303		Clamp		Appelez-nous	-
353	A3080001		Plug, Button (blk)		Appelez-nous	-
462	M0204339		Screw Bolt K		Appelez-nous	-
473	A3076901		Plug-button				$ 5.70
521	10496104		Kit,hinge Lh Btm(b)		Appelez-nous	-
531	10496112		Kit,hinge Rh Btm(b)		Appelez-nous	-
901	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
1103	12021201		Baffle, Air		Appelez-nous	-
1112	10093301		Screw, Adj Roller		Appelez-nous	-
1201	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
1402	M0274067		Washer, Nylon		Appelez-nous	-
3701	12146901		Brkt-adj Hinge		Appelez-nous	-
4012	B8386608		Gasket		Appelez-nous	-
4042	B8386607		Gasket (1=1ft.)		Appelez-nous	-
4052	10893802		Shield, Evap		Appelez-nous	-
4062	D7850202		Drip Tray Pnt.		Appelez-nous	-
4072	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
4082	10098801		Rivet		Appelez-nous	-
4102	R0181181		Kit,dr Closure   (Replaces: 12113502)			Immediately	$ 7.55
4132	M0580002		Grommet A		Appelez-nous	-
4152	10527401		Clip, Evap		Appelez-nous	-
4162	10623003		Clip, Evaporator		Appelez-nous	-
4172	10890202		Evap Fan Shroud		Appelez-nous	-
4815	A3030361		Gasket		Appelez-nous	-
7021	12146701		Shim-bot Hinge		Appelez-nous	-
7031	12146702		Shim-bot Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
