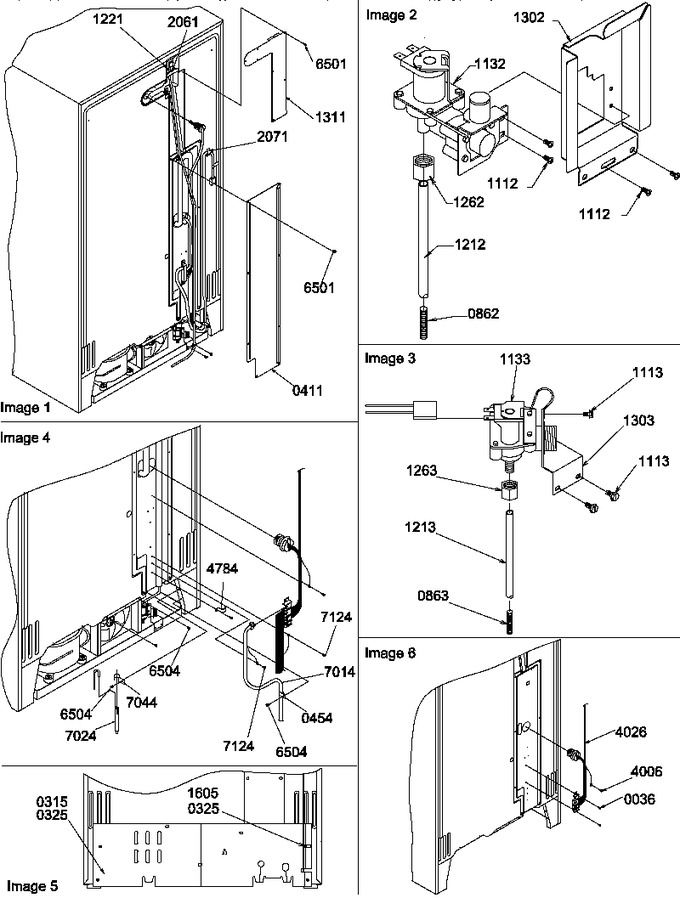

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	A3189336		Gasket, Foam		Appelez-nous	-
22	12236001		Plate-water Valve		Appelez-nous	-
23	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
31	10178505		Cover - Wire		Appelez-nous	-
36	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
59	12194404		Assy, M.c.back		Appelez-nous	-
69	M0219704		Screw		Appelez-nous	-
69	M0108001		Clamp, Tube		Appelez-nous	-
88	681390		Screw   (Replaces: M0251015)				$ 13.71
94	A1055101		Spring, Antikink		Appelez-nous	-
101	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
102	10678503		Cord, Power		Appelez-nous	-
104	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
108	WP2315576		Valve, Water (sgl)   (Replaces: 12213901)			Immediately	$ 95.98
112	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
132	10547002		Clip, Drier		Appelez-nous	-
155	10178405		Cover, O.c.back		Appelez-nous	-
166	WP489399		Screw   (Replaces: M0232903)				$ 7.30
176	B5794201		Clamp		Appelez-nous	-
186	10974001		Harness, Cabinet		Appelez-nous	-
188	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
197	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
198	M0103904		Clamp, Speed		Appelez-nous	-
212	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
238	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
NI	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
