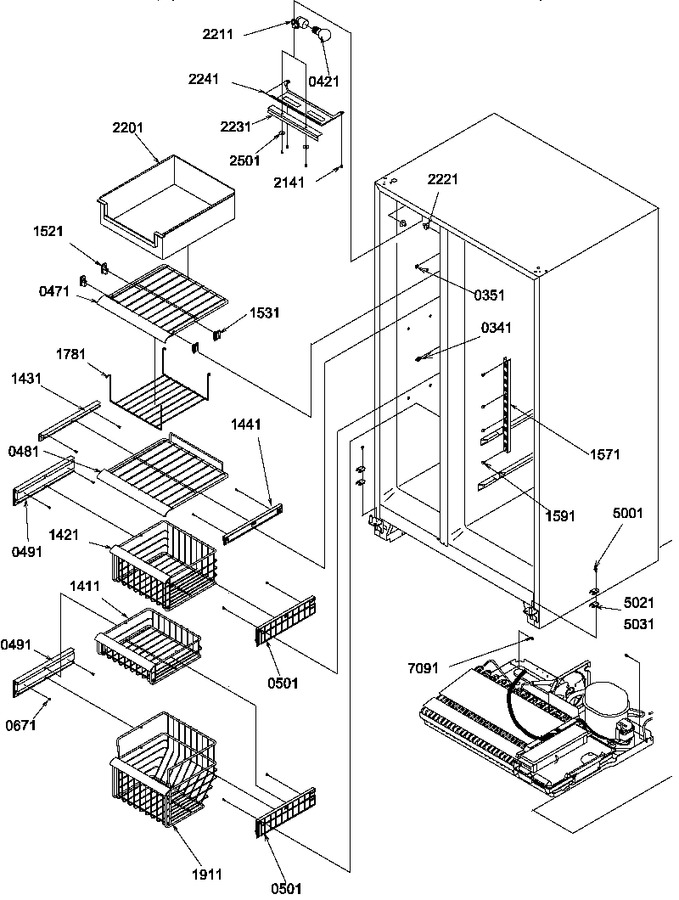

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	12373101		Ladder, Center		Appelez-nous	-
55	M0238636		Screw-sm		Appelez-nous	-
85	M0322202		Tie Wire		Appelez-nous	-
93	M0238846		Screw-sm		Appelez-nous	-
95	M0580007		Grommet, Screw		Appelez-nous	-
119	12011901		Basket, 11`` Freezer		Appelez-nous	-
131	12011801		Basket, 7`` Freezer		Appelez-nous	-
137	W11227370		Screw, Tc   (Replaces: M0220431)			Immediately	$ 14.91
141	12011701		Basket, 3`` Freezer		Appelez-nous	-
151	12012801		Rail, L. Shelf		Appelez-nous	-
153	D7806201		Pan, Ice		Appelez-nous	-
157	B8387703		Shim, Door Closure		Appelez-nous	-
159	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
161	10991401		Rail- R Shelf		Appelez-nous	-
163	C8973405		Socket-light		Appelez-nous	-
167	WP67005716		Shim, Dr Closure (blk)   (Replaces: B8387704)				$ 7.83
173	M0560005		Support		Appelez-nous	-
179	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
183	10014715		Shield, Light		Appelez-nous	-
193	10493302		Cover, Frz Light		Appelez-nous	-
197	M0270508		Washer		Appelez-nous	-
215	12013801		Shelf, Stat. Freezer		Appelez-nous	-
225	12012101		Shelf, Freezer Wire		Appelez-nous	-
235	12012901		Rail, L. Dbl Shelf		Appelez-nous	-
241	10941202		Support, L Shelf		Appelez-nous	-
245	10991601		Rail- R Double		Appelez-nous	-
245	12013901		Rack, Freezer		Appelez-nous	-
251	WP10941102		Support, Shelf (rt)				$ 11.81
