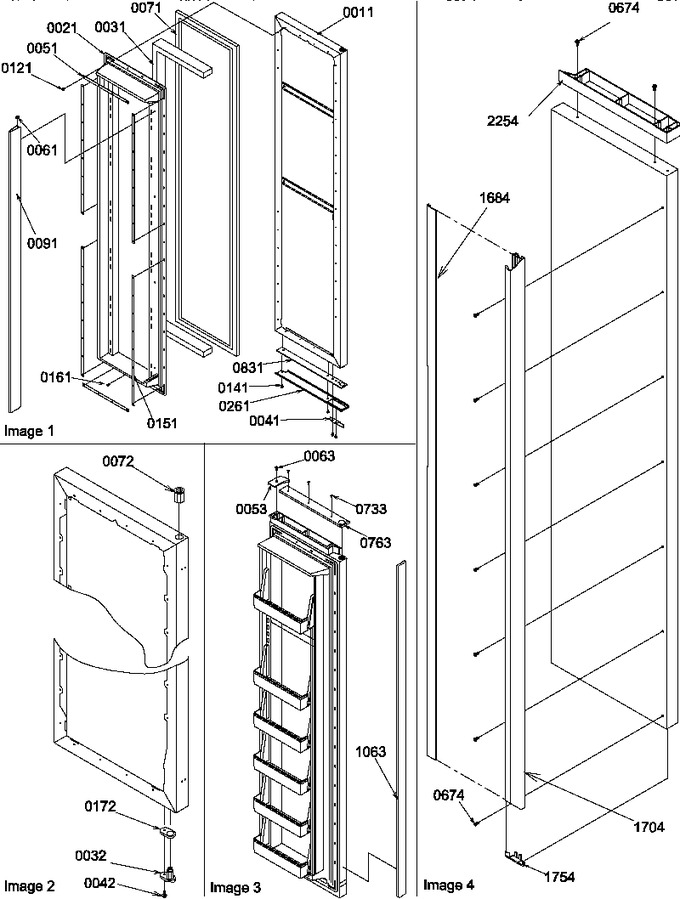

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	10602507		Trim- L Fz Dr Bot		Appelez-nous	-
11	10881101L		Assy, Fz Dr Foam (alm)		Appelez-nous	-
21	10534901		Liner, Frz. Door		Appelez-nous	-
31	B0523563		Insulation Ft. K		Appelez-nous	-
32	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
39	10494521		Trim-l Vertical		Appelez-nous	-
41	C8972406		Stop, L Door		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	C8982801		Retainer, Door Liner		Appelez-nous	-
53	10871104		Cap, Frz Handle Top(almond)		Appelez-nous	-
61	10063102		Clip, Door Dike		Appelez-nous	-
63	10494604		Support, Fz Trim		Appelez-nous	-
63	M0213517		Screw K		Appelez-nous	-
64	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
71	10359709		Gasket (w Frz Dr)		Appelez-nous	-
72	10961001		Bushing, Door (wht)		Appelez-nous	-
91	10063206		Rem Dike I & W Lower		Appelez-nous	-
121	M0219730		Screw				$ 7.65
141	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
148	10945934		Insert-l Handle Org		Appelez-nous	-
151	D7828601		Retainer, Door Liner		Appelez-nous	-
161	M0226705		Screw, Shoulder		Appelez-nous	-
162	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
168	12106212		Handle, Frz Dr (almond)		Appelez-nous	-
172	10361804		Shim, Dr Bushing		Appelez-nous	-
206	10979202		Ext, Fz Dr Almond		Appelez-nous	-
218	10871204		Cap, Frz Handle Bot(almond)		Appelez-nous	-
221	M0213815		Screw		Appelez-nous	-
251	10494205		Trim-l Fz Dr Top		Appelez-nous	-
