Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 C8987105 Seal, Door Dike Appelez-nous -
2 M0219730 Screw Special Order $ 7.65

3 B0523562 Insul. By The Ft. Appelez-nous -
4 D7828601 Retainer, Door Liner Appelez-nous -
5 B5629043 Insulation Appelez-nous -
6 B5629044 Insulation Appelez-nous -
7 C8982801 Retainer, Door Liner Appelez-nous -
8 D7834009 Fz Dr Pan, W Appelez-nous -
8 D7834010 Door Frz L Appelez-nous -
8 D7834015 Door Frz G Q Appelez-nous -
9 D7783701 Bucket Frz. Door Appelez-nous -
10 D7800403 Foam Slab, Door Appelez-nous -
11 D7870904 Gasket (w Frz Dr) Appelez-nous -
12 D7828403 Inner Door Frz Appelez-nous -
13 10169401 Retainer, Package Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

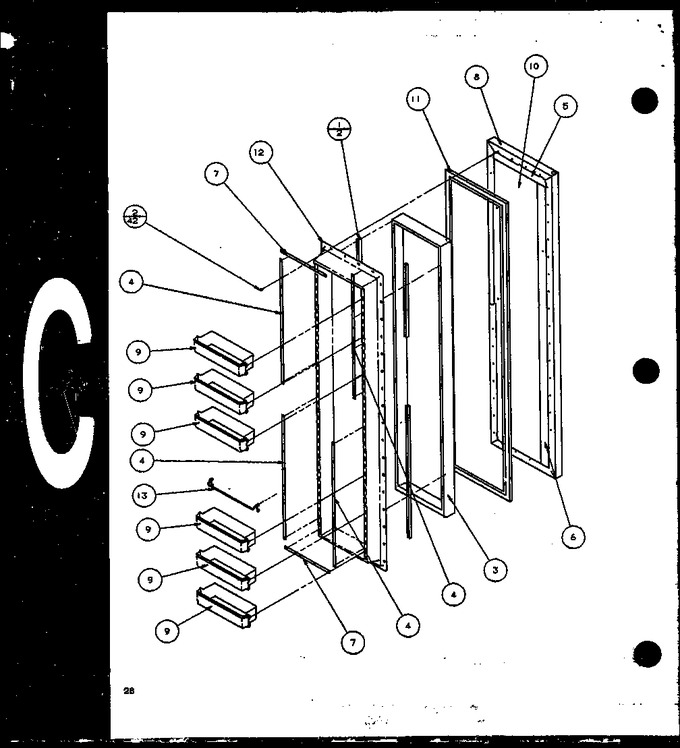

Diagram for SC22J (BOM: P1116002W)
