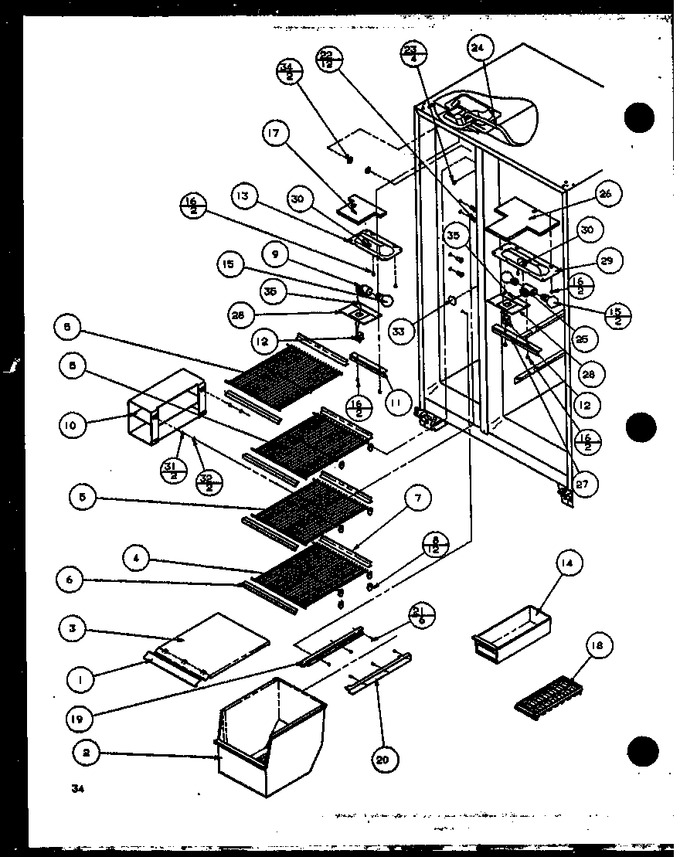

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7616616 | Trim Frz Shelf |
|
- | |||||
| 2 | D7781401 | Basket Freezer Clear |
|
- | |||||
| 3 | D7781502 | Freezer Shelf |
|
- | |||||
| 4 | D7788301 | Shelf, Fz Wire |
|
- | |||||
| 5 | D7788303 | Shelf, Frz |
|
- | |||||
| 6 | C8913510 | Trim, Front Frz Shelf |
|
- | |||||
| 7 | C8913605 | Trim, Rear Frz. Shelf |
|
- | |||||
| 8 | C8973801 | Support, Frz Shelf |
|
$ 8.35 | |||||
| 9 | C8973403 | Socket-light |
|
- | |||||
| 10 | D7620106 | Rack, Ice Service |
|
- | |||||
| 11 | 10014701 | Shield, Light |
|
- | |||||
| 12 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 39.09 | ||||
| 13 | D7760102 | Housing Frz Light |
|
- | |||||
| 14 | D7620009 | Ice Bin |
|
- | |||||
| 15 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 16 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 17 | C8976301 | Barrier |
|
- | |||||
| 18 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 19 | 67005375 | Glide-l Fz (Replaces: D7849903) |
|
$ 312.82 | |||||
| 20 | D7849904 | Glide, Freezer Rh |
|
- | |||||
| 21 | M0213529 | Screw |
|
- | |||||
| 22 | C8973701 | Plug, Frz Shelf Support |
|
- | |||||
| 23 | M0580007 | Grommet, Screw |
|
- | |||||
| 24 | D7771302 | Harness Outer Liner |
|
- | |||||
| 25 | D7808602 | Socket, Dual Lamp |
|
- | |||||
| 26 | C8778301 | Insulation |
|
- | |||||
| 27 | 10014702 | Shield, Light |
|
- | |||||
| 28 | D7297603 | Cover, Light Sw |
|
- | |||||
| 29 | D7716404 | Housing-ref Light |
|
- | |||||
| 30 | B5733302 | Clip, Ground |
|
- | |||||
| 31 | M0219559 | Screw |
|
- | |||||
| 32 | M0270508 | Washer |
|
- | |||||
| 33 | A3069103 | Plug |
|
- | |||||
| 34 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 5.98 | ||||
| 35 | B5781002 | Jumper Wire |
|
- |
