Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7786705 Grille Toe Autumn Gold Appelez-nous -
1 D7786703 Grille Toe W Appelez-nous -
1 D7786704 Grille Toe L V Appelez-nous -
2 M0117301 Clip, Grille Appelez-nous -
3 A3187702 Tunnel, Air Appelez-nous -
4 A3187801 Retainer Appelez-nous -
5 B5629045 Insulation Appelez-nous -
6 B5705320 Tubing, Plastic (wtr Tank/do Appelez-nous -
7 WPB8381501 Gasket, Drain Tube   (Replaces: B8381501) Special Order $ 7.78

8 W10815413 Funnel, Drain   (Replaces: D7753901) In-Stock Immediately $ 51.50

9 D7785401 Grille-rtn Air Appelez-nous -
10 D7785501 Tunnel, Air Supply Appelez-nous -
11 D7837501 Heater, Mullion Appelez-nous -
12 D7788605 Vertical, Mullion Appelez-nous -
12 D7788602 Mullion,vert-white E Ct Appelez-nous -
12 D7788606 L Vt Mull-pnt Appelez-nous -
14 12991101 Screw, Sm   (Replaces: M0210816) Special Order $ 13.47

15 WPM0500703 Seal, O Ring   (Replaces: M0500703) Special Order $ 11.47

16 M0580007 Grommet, Screw Appelez-nous -
17 B8345401 Gasket, Damper Appelez-nous -
18 B8391605 Collar, Switch Appelez-nous -
19 C8902601 Insert, Control Appelez-nous -
21 D7547407 Control, Damper Appelez-nous -
22 10176602 Air Duct, Waxed Appelez-nous -
23 D7788201 Insulation Appelez-nous -
24 D7790303 Cover, Control Appelez-nous -
25 D7795801 Knob, Control Appelez-nous -
26 10177901 Gasket, Air Duct Appelez-nous -
27 D7822402 Box, Bottom Control Appelez-nous -
30 R0161092 Control-temp   (Replaces: C3615024) Special Order $ 226.99

31 D7868601 Box Control Top Appelez-nous -
33 M0234003 Screw Appelez-nous -
35 M0342601 Switch, Heater Appelez-nous -
36 WP489474 Screw 1``   (Replaces: M0211021) In-Stock Immediately $ 8.55

37 A3044208 Spacer Damper Appelez-nous -
38 C8977301 Clamp Appelez-nous -
39 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

40 M0216539 Screw Appelez-nous -
41 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30


    View Diagram in Separate Window     Print Icon   Print Part List

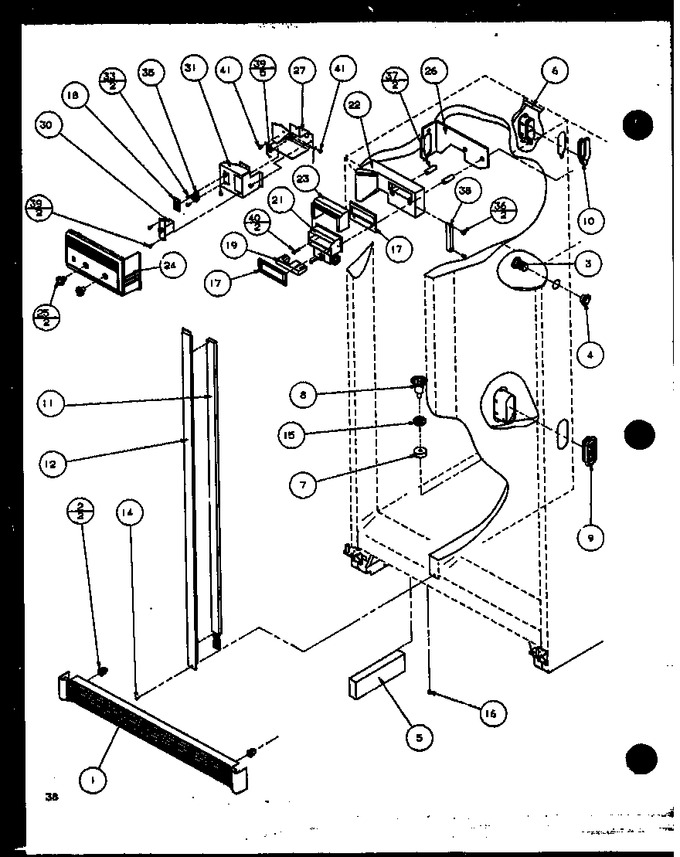

Diagram for SC22J (BOM: P1116002W)
