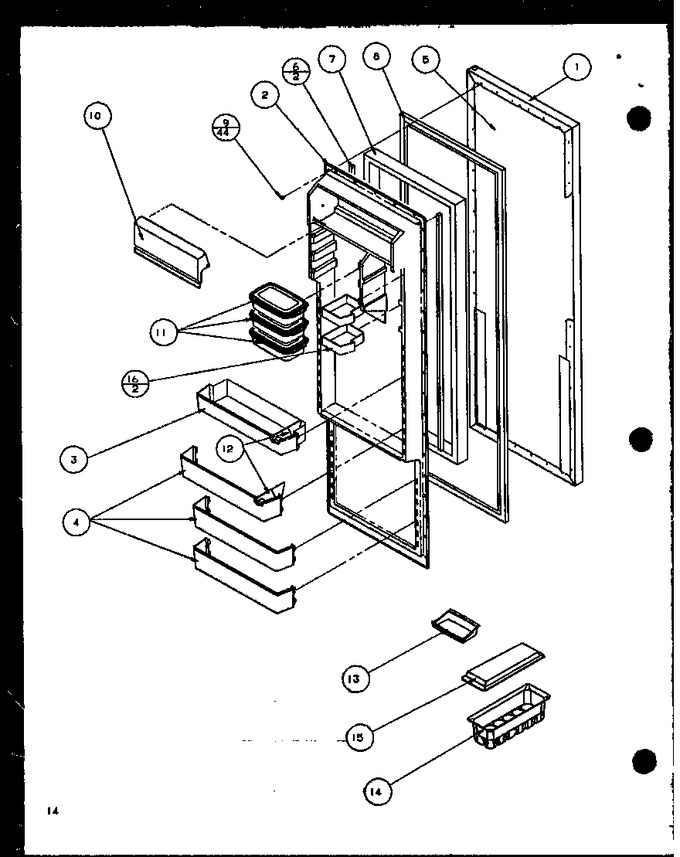

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7757920		Door Ref W		Appelez-nous	-
1	D7845711		Door Ref G Q		Appelez-nous	-
1	D7757922		Door Ref L		Appelez-nous	-
2	D7828303		Inner Door. Ref		Appelez-nous	-
3	D7797101		Bucket, Ref Door		Appelez-nous	-
4	D7797001		Shelf, Ref Door		Appelez-nous	-
5	B0566724		Insulation		Appelez-nous	-
6	C8987102		Seal, Door Dike		Appelez-nous	-
7	B0523562		Insul. By The Ft.		Appelez-nous	-
8	10104403		Gasket, Door (w Ref)		Appelez-nous	-
9	M0219730		Screw				$ 7.65
10	D7796901		Dairy Door		Appelez-nous	-
11	D7806404		Container Sec. Ser.		Appelez-nous	-
12	D7814602		Snugger		Appelez-nous	-
13	D3799802		Butter Tray		Appelez-nous	-
14	D7695603		Egg Bucket A-v		Appelez-nous	-
15	D7805902		Cover, Egg Bucket		Appelez-nous	-
16	D7803501		Shelf, Condiment		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
